Overview (Ntchisi)

The goals of this analysis are:

For the detailed methodology on how these maps were created, please refer to the supplementary material provided.

Download the full district report here.

Ntchisi Maps

Population, PLHIV and Travel Times

Malawi Overview Map

Each pixel on the map corresponds to an area of 1km x 1km. Below we display a map of Malawi with some general information:

  • Population: population density using the WorldPop population density map, adjusted to the 2018 census numbers.
  • PLHIV: gridded prevalence estimates of the number of people living with HIV (“PLHIV density estimates”).
  • HIV Prevalence: estimated gridded HIV prevalence.
  • Geographical distance: direct distance (in km) to the closest ART facility.
  • Walking time: estimated travel time (in minutes) to the closest ART facility at a given pixel.

Additionally, it is possible to add markers with facility locations to the map:

  • ART Facilities: health facilities that provide ART services and had at least one patient on ART in 2020 (based on the DHA-MIS database).
    • “Private for profit” facilities are excluded from the analysis.
    • The number of ART patients in Q3/2020 is provided in the brackets.
  • Non-ART Facilities (Static): other (nonprofit) health facilities that do not currently provide ART facilities. (These include facilities that have indicated that they have capacity to provide ART services).

Time Thresholds

By comining the travel time maps with the gridded PLHIV prevalence, the number of PLHIV that is not reached within a certain time limit or distance (km) is computed. This is visualised in the below two maps, stratified by geographical distance and walking time.

Example interpretations:

  • Walking 15 minutes: this gives a map of the regions with PLHIV for which the closest facility is more than 15 mintues (walking time) away.
  • 5km distance: this gives a map of the regions with PLHIV for which the closest facility is more than 5km (geographical distance) away.

TA analysis

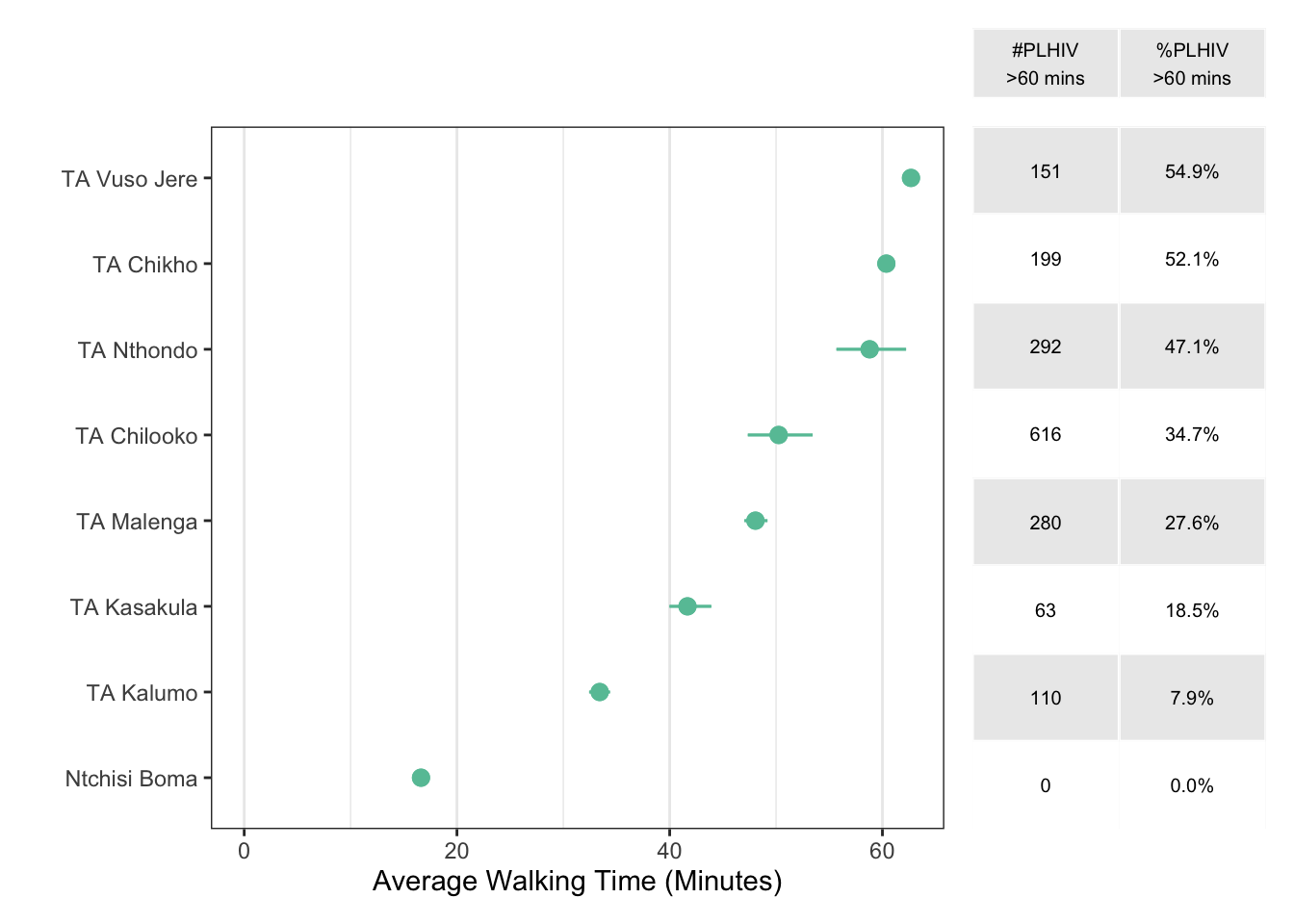

To support the analysis, we have computed the proportion and number of PLHIV that are not reached within a given time or distance. Higher percentages correspond to a larger proportion of PLHIV that is not reached within the relevant area.

Candidate Facilities (60 Minutes)

Below we provide proposed facilities for scaling-up activities, illustrated on the maps. Green areas indicate additional PLHIV that can be reached through the proposed facilities within 60 minutes. Note: facility labels were aligned to district reports that were disseminated.

Summary Information

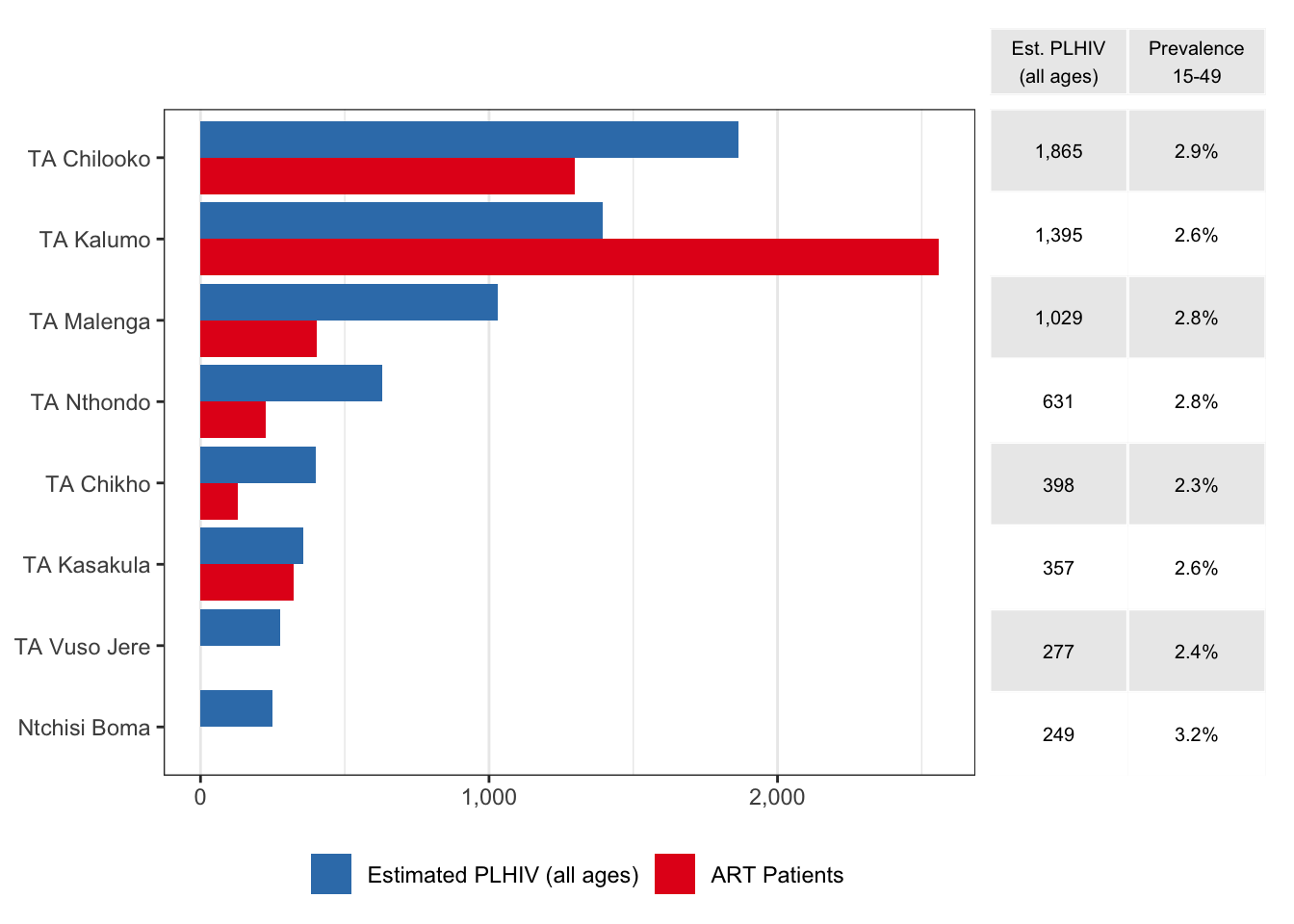

Summary estimates for Ntchisi, September 2020.
Total PLHIV (all ages) 6,203 (5,054–7,567)
HIV prevalence, age 15-49 years 2.7% (2.2%–3.4%)
Total patients receiving ART 9,322
Average walking time to nearest ART (minutes) 46 (45–48)
Number PLHIV > 60 minutes walking time 1,711 (1,359–2,104)
Percentage PLHIV > 60 minutes walking time 28.2% (25.9%–30.7%)

Facility List

ART Facilities

List of active ART facilities that had at least 1 registered ART patient in September 2020. The column “ART” indicates how many ART patients are registered at the ART facility. Facilities outside the district boundaries that may be accessible to residents within the district are marked with “*“.
ID District TA Name Type Authority Long. Lat. ART
A1 Ntchisi TA Kalumo Ntchisi District Hosp. District hospital Government 33.91 -13.36 2100
A2 Ntchisi TA Chilooko Malomo HC Health centre Government 33.84 -13.15 890
A3 Ntchisi TA Malenga Kansonga HC Ntchisi Health centre Government 33.80 -13.27 402
A4 Ntchisi TA Kasakula Kangolwa HC Health centre Government 34.07 -13.37 323
A5 Ntchisi TA Kalumo Khuwi HC Health centre Government 33.83 -13.43 288
A6 Ntchisi TA Chilooko Chinguluwe HC Ntchisi Health centre Government 33.87 -13.26 285
A7 Ntchisi TA Nthondo Nthondo HC Health centre Government 34.02 -13.25 215
A8 Ntchisi TA Kalumo Mkhuzi HC Health centre Government 33.78 -13.37 148
A9 Ntchisi TA Chikho Mzandu HC Health centre Government 34.03 -13.49 130
A10 Ntchisi TA Chilooko Malambo St Theresa HC Health centre CHAM 33.76 -13.21 123
A11 Ntchisi TA Kalumo Chinthembwe HC Health centre CHAM 33.91 -13.43 23
A12 Ntchisi TA Nthondo Mndinda HC Health centre Government 34.06 -13.25 12
A13* Kasungu TA Chilowamatambe Chamwabvi Disp. Dispensary Government 33.69 -13.11 323
A14* Kasungu STA Mdunga Mdunga HC Health centre Government 33.85 -12.99 132
A15* Nkhotakota TA Mwadzama Mwansambo HC Health centre Government 34.13 -13.50 334
A16* Dowa Mponela Urban Mponela Rural Hosp. Rural/Community Government 33.74 -13.53 2293
A17* Dowa TA Chakhaza Bowe HC Health centre Government 33.68 -13.28 364
A18* Dowa TA Chakhaza Chinkhwiri HC Health centre Government 33.72 -13.39 204
A19* Dowa TA Msakambewa Mwangala HC Health centre Government 33.92 -13.49 134
A20* Dowa TA Msakambewa Msakambewa HC Health centre Government 33.90 -13.55 124
A21* Dowa TA Chiwere Nalunga Mafika HC Health centre Government 34.06 -13.64 98
A22* Salima TA Mwanza Makiyoni HC Health centre Government 34.20 -13.59 377

Non-ART Facilities

List of non-ART facilities considered in the analysis. The column “PLHIV” indicates the number of PLHIV that currently need more than 60 minutes to walk to the closest ART facility but less than 60 minutes to the listed health facility in the table. Facilities outside the district boundaries that may be accessible to residents within the district are marked with “*“.
ID District TA Name Type Authority Long. Lat. PLHIV 95% CI
F1 Ntchisi TA Nthondo SAMBAKUSI Health Post Government 33.98 -13.35 143 (97-203)
F2 Ntchisi TA Kalumo Mpherere HC Health Centre Government 33.92 -13.37 16 (11-23)
F3 Ntchisi TA Nthondo Mndinda Disp. Dispensary Government 34.06 -13.25 0 (0-0)
F4* Kasungu TA Wimbe Kamuzu Academy Clinic Clinic Company 33.69 -13.03 17 (12-24)
F5* Dowa TA Chakhaza MTAMBALIKA Health Post Other 33.60 -13.28 252 (173-366)
F6* Dowa TA Msakambewa MATEKENYA Dispensary Government 34.05 -13.56 177 (121-251)
F7* Dowa Mponela Urban BLM Mponela Special NGO 33.74 -13.53 79 (58-106)
F8* Dowa TA Chiwere Nalunga HC Health Centre Government 34.06 -13.64 0 (0-0)
