the odin-monty toolkit

MRC Centre for Global Infectious Disease Analysis, Imperial College London

Ed Knock

2025-09-24

odin - the beginnings (2016-2019)

  • odin created to integrate ODEs (e.g. for compartmental models) in R with a domain-specific language (DSL)
  • Limited support for difference (discrete-time) equations
  • Automatic translation to C/C++/JavaScript; efficient solutions in little code
  • Used in models of malaria, HIV, ebola and other diseases
  • No support for inference

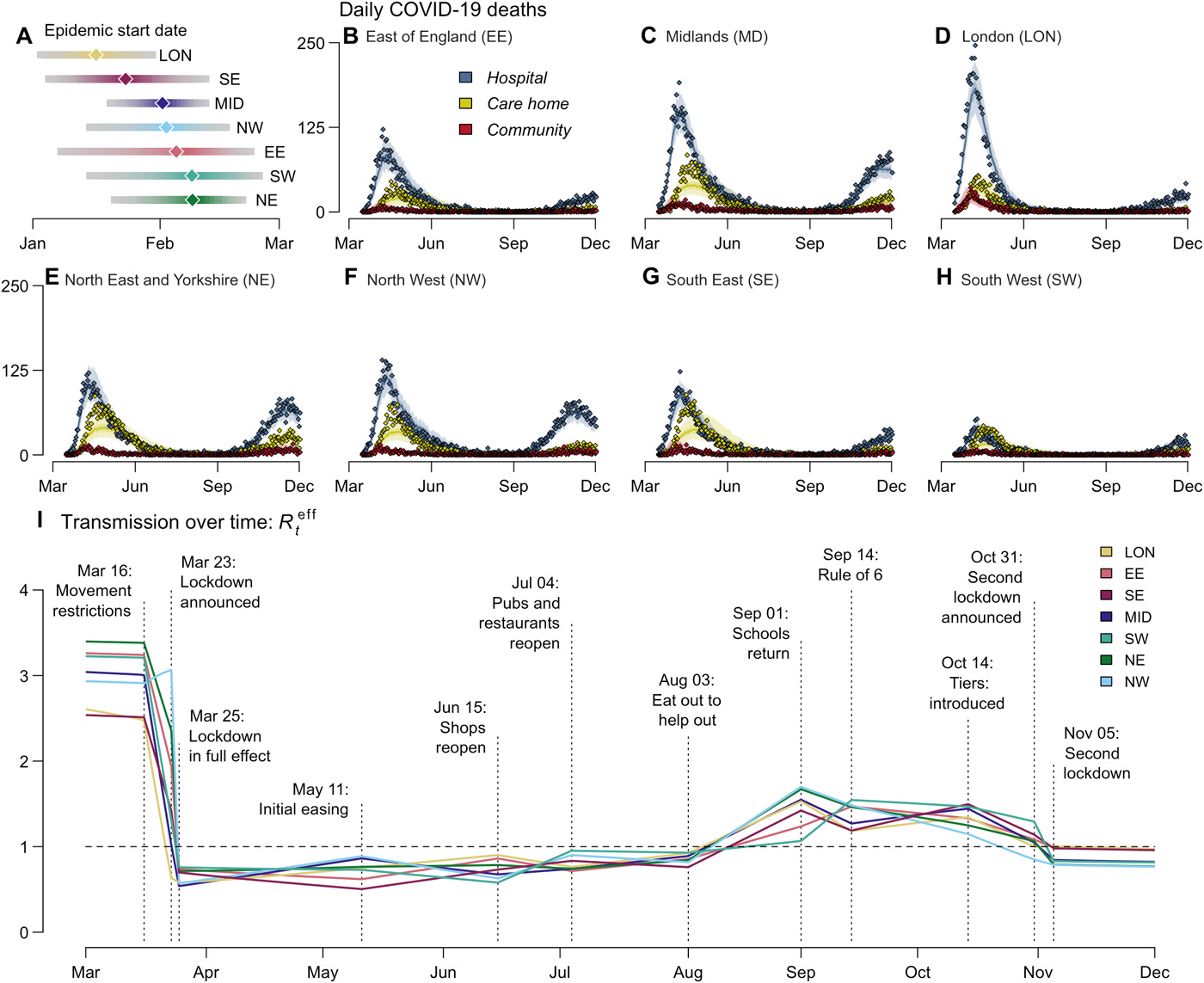

😷 COVID-19 response (2020-2022)

(Knock et al 2021, Science Translational Medicine)

😷 COVID-19 response (2020-2022)

  • mcstate for statistical machinery (particle filter, pMCMC)
  • dust for efficient parallel simulation
  • odin.dust compile odin code to use dust
  • Collaborative work by the UK real-time modelling & research software engineers teams at Imperial College
  • Many, many, rough edges

New software

  • Design of a new architecture, rewiring data, model and parameters
  • New statistical interface, monty
    • A new small BUGS-inspired DSL for priors
    • Works well with odin models, but usable on its own
    • Modular, and eventually easy to extend
    • Fully replaces mcstate
    • inverts the dependency stack

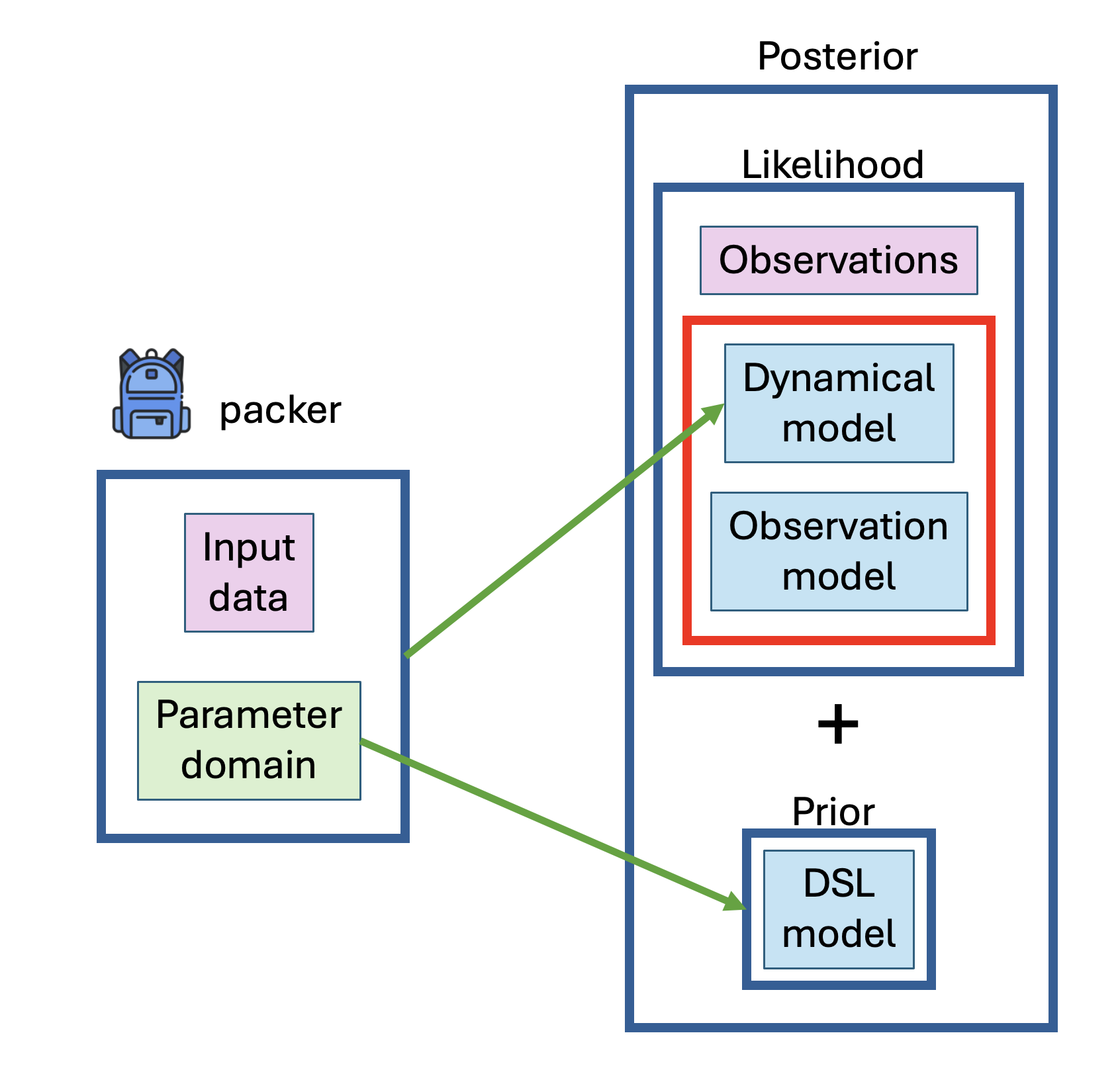

Key components

  • monty models can be built from
    • odin and data
    • custom DSL
    • by composition
  • Range of samplers available
  • Concept of “packer”

An odin-monty demo

We will show:

  • how to use odin2 to write and compile some simple models
  • how to use dust2 to simulate from these
  • how to use monty to fit these to data

The data

We have some data on the daily incidence of cases

data <- read.csv("data/incidence.csv")
head(data)
#>   time cases
#> 1    1    12
#> 2    2    23
#> 3    3    25
#> 4    4    36
#> 5    5    30
#> 6    6    57

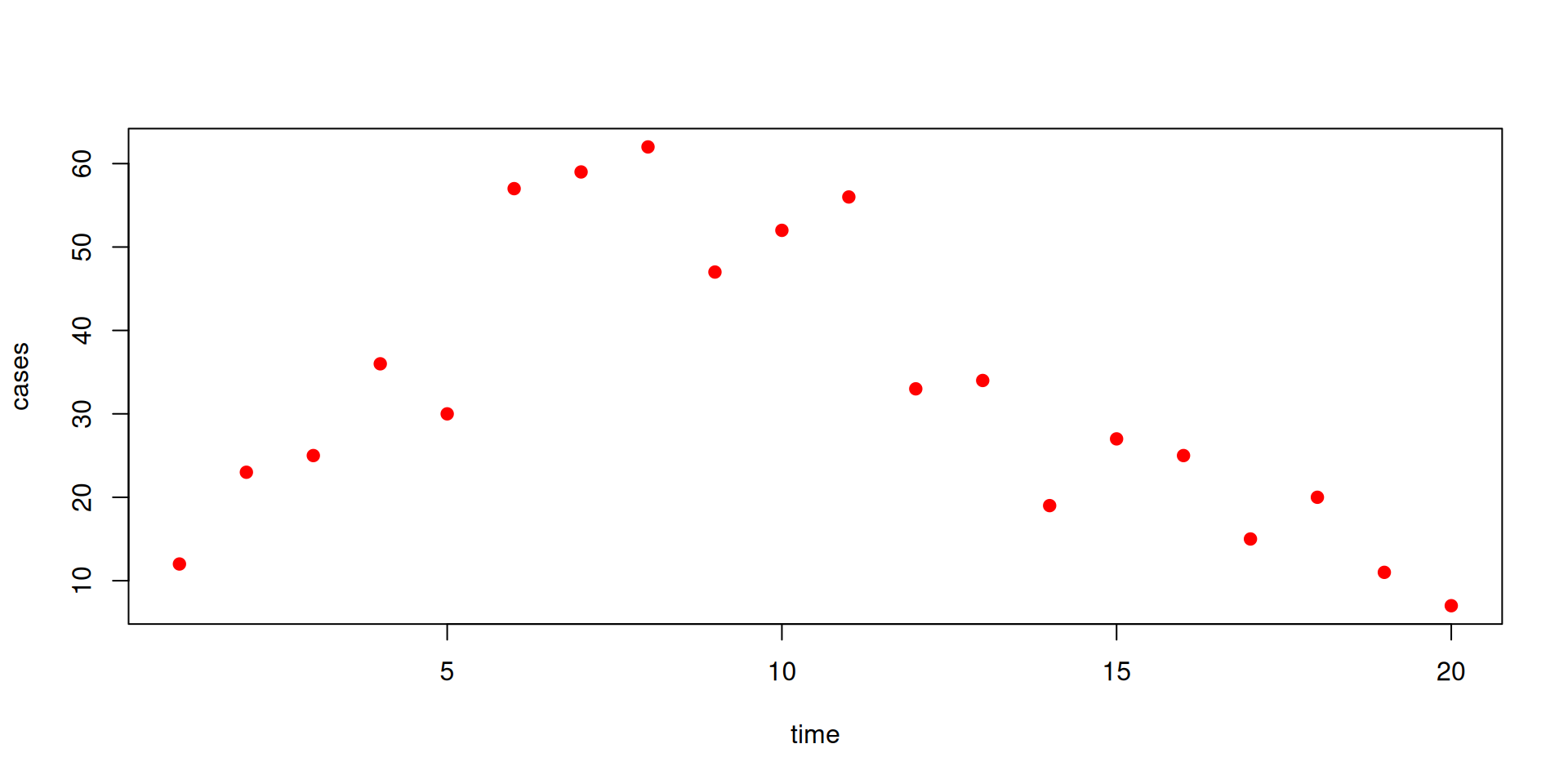

The data

plot(data, pch = 19, col = "red")

odin

library(odin2)
library(dust2)
library(monty)

ODE models

deriv(S) <- -beta * S * I / N
deriv(I) <- beta * S * I / N - gamma * I
deriv(R) <- gamma * I

initial(S) <- N - I0
initial(I) <- I0
initial(R) <- 0

N <- parameter(1000)
I0 <- parameter(10)
beta <- parameter(0.2)
gamma <- parameter(0.1)

\[\begin{gather*} \frac{dS}{dt} = -\beta S \frac{I}{N}\\ \frac{dI}{dt} = \beta S \frac{I}{N} - \gamma I\\ \frac{dR}{dt} = \gamma I \end{gather*}\]

Things to note:

  • out of order definition
  • every variable has initial and deriv pair

Compiling the model with odin2

sir_ode <- odin({
  deriv(S) <- -beta * S * I / N
  deriv(I) <- beta * S * I / N - gamma * I
  deriv(R) <- gamma * I

  initial(S) <- N - I0
  initial(I) <- I0
  initial(R) <- 0

  N <- parameter(1000)
  I0 <- parameter(10)
  beta <- parameter(0.2)
  gamma <- parameter(0.1)
})

Running the model with dust2

sys <- dust_system_create(sir_ode, pars = list())
dust_system_set_state_initial(sys)
t <- seq(0, 100)
y <- dust_system_simulate(sys, t)

The output has dimensions number of states x number of timepoints

dim(y)
#> [1]   3 101

Unpacking states

Output can be nicely unpacked into the different states using dust_unpack_state

y <- dust_unpack_state(sys, y)

plot(t, y$I, type = "l", xlab = "Time", ylab = "I")

Stochastic models

update(S) <- S - n_SI
update(I) <- I + n_SI - n_IR
update(R) <- R + n_IR

initial(S) <- N - I0
initial(I) <- I0
initial(R) <- 0

p_SI <- 1 - exp(-beta * I / N * dt)
p_IR <- 1 - exp(-gamma * dt)
n_SI <- Binomial(S, p_SI)
n_IR <- Binomial(I, p_IR)

N <- parameter(1000)
I0 <- parameter(10)
beta <- parameter(0.2)
gamma <- parameter(0.1)

\[\begin{gather*} S(t + dt) = S(t) - n_{SI}\\ I(t + dt) = I(t) + n_{SI} - n_{IR}\\ R(t + dt) = R(t) + n_{IR} \end{gather*}\]

  • dt is a special parameter
  • every variable has initial and update pair

…compared with ODE models

update(S) <- S - n_SI
update(I) <- I + n_SI - n_IR
update(R) <- R + n_IR

initial(S) <- N - I0
initial(I) <- I0
initial(R) <- 0

p_SI <- 1 - exp(-beta * I / N * dt)
p_IR <- 1 - exp(-gamma * dt)
n_SI <- Binomial(S, p_SI)
n_IR <- Binomial(I, p_IR)

N <- parameter(1000)
I0 <- parameter(10)
beta <- parameter(0.2)
gamma <- parameter(0.1)
deriv(S) <- -beta * S * I / N
deriv(I) <- beta * S * I / N - gamma * I
deriv(R) <- gamma * I

initial(S) <- N - I0
initial(I) <- I0
initial(R) <- 0

N <- parameter(1000)
I0 <- parameter(10)
beta <- parameter(0.2)
gamma <- parameter(0.1)

Compiling with odin2

sir <- odin({
  update(S) <- S - n_SI
  update(I) <- I + n_SI - n_IR
  update(R) <- R + n_IR

  initial(S) <- N - I0
  initial(I) <- I0
  initial(R) <- 0

  p_SI <- 1 - exp(-beta * I / N * dt)
  p_IR <- 1 - exp(-gamma * dt)
  n_SI <- Binomial(S, p_SI)
  n_IR <- Binomial(I, p_IR)

  N <- parameter(1000)
  I0 <- parameter(10)
  beta <- parameter(0.2)
  gamma <- parameter(0.1)
})

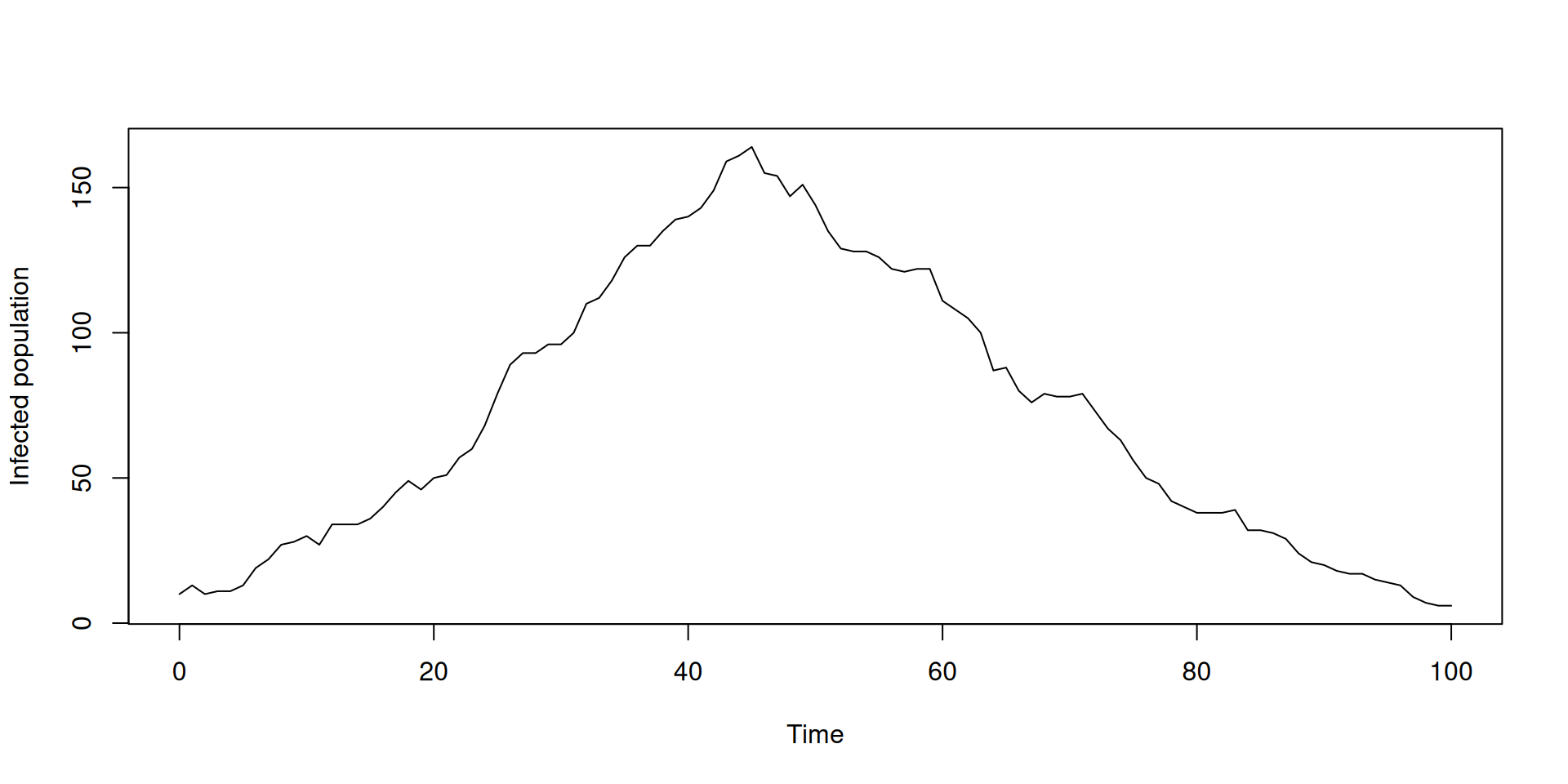

Running a single simulation

sys <- dust_system_create(sir, pars = list(), dt = 0.25)
dust_system_set_state_initial(sys)
t <- seq(0, 100)
y <- dust_system_simulate(sys, t)
y <- dust_unpack_state(sys, y)

plot(t, y$I, type = "l", xlab = "Time", ylab = "Infected population")

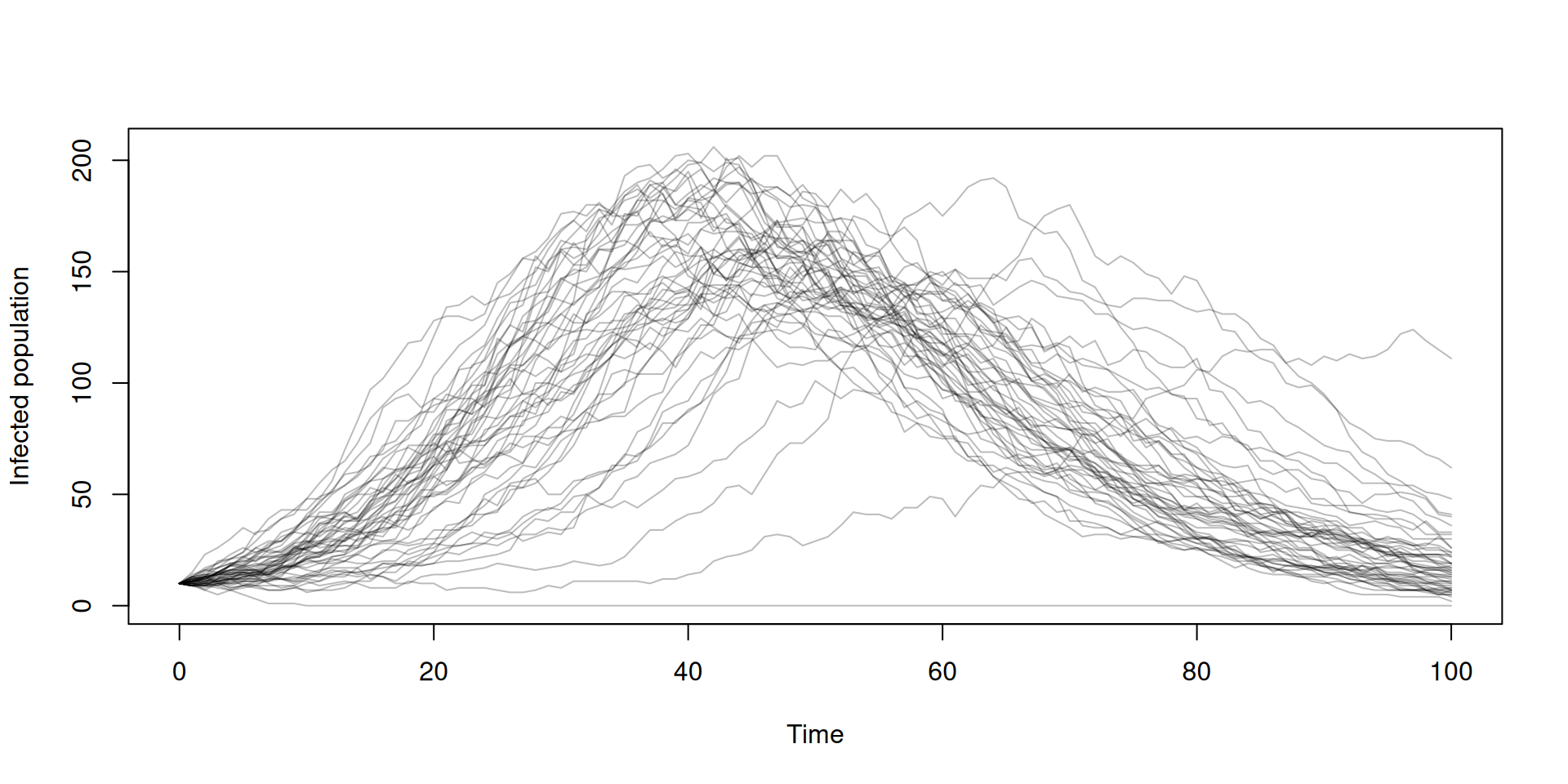

Running multiple simulations

sys <- dust_system_create(sir, pars = list(), n_particles = 50, dt = 0.25)
dust_system_set_state_initial(sys)
t <- seq(0, 100)
y <- dust_system_simulate(sys, t)
y <- dust_unpack_state(sys, y)
matplot(t, t(y$I), type = "l", lty = 1, col = "#00000044",
        xlab = "Time", ylab = "Infected population")

Calculating incidence with zero_every

sir <- odin({
  update(S) <- S - n_SI
  update(I) <- I + n_SI - n_IR
  update(R) <- R + n_IR
  update(incidence) <- incidence + n_SI

  p_SI <- 1 - exp(-beta * I / N * dt)
  p_IR <- 1 - exp(-gamma * dt)
  n_SI <- Binomial(S, p_SI)
  n_IR <- Binomial(I, p_IR)

  initial(S) <- N - I0
  initial(I) <- I0
  initial(R) <- 0
  initial(incidence, zero_every = 1) <- 0

  N <- parameter(1000)
  I0 <- parameter(10)
  beta <- parameter(0.2)
  gamma <- parameter(0.1)
})

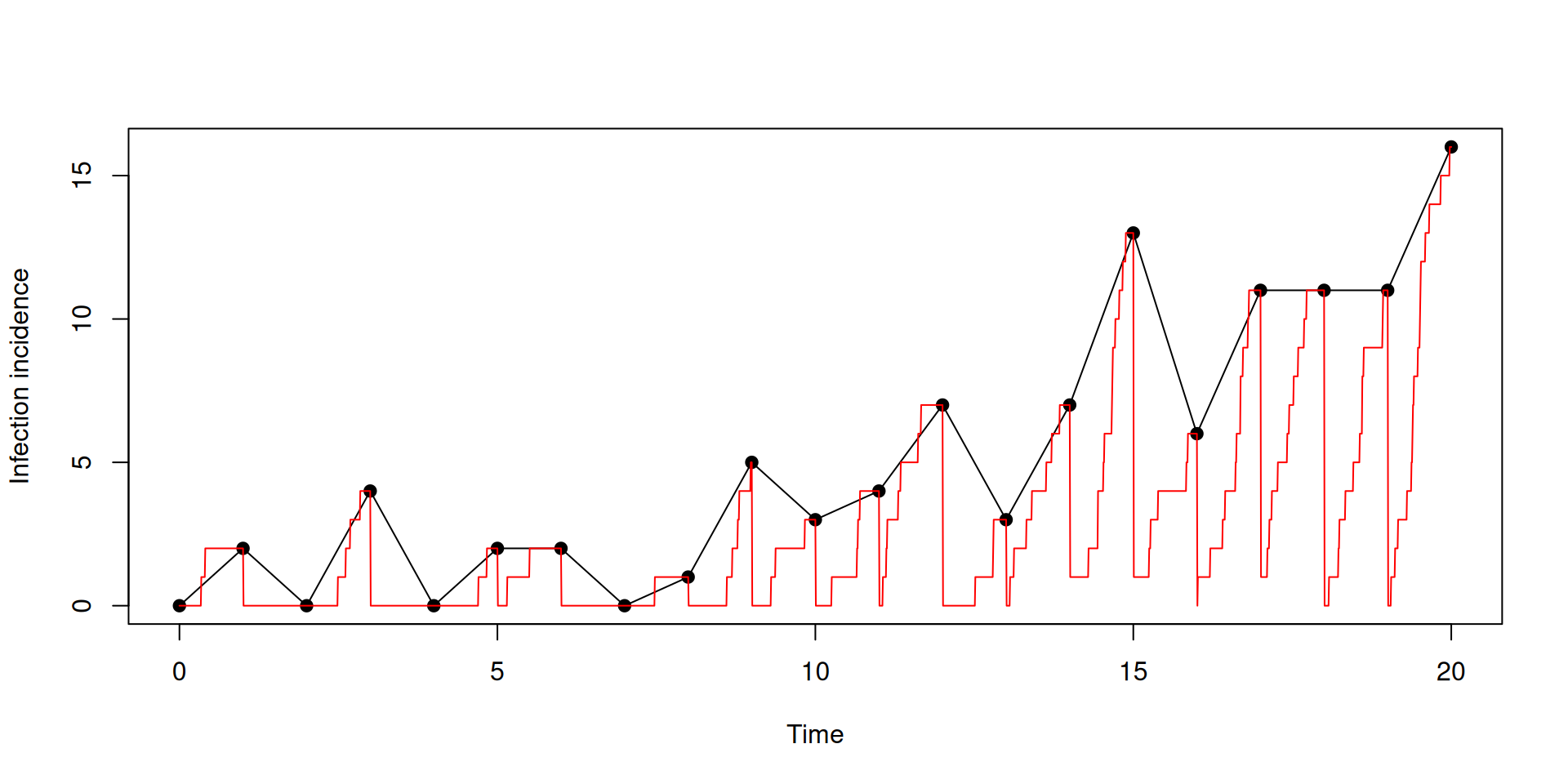

Incidence accumulates then resets

sys <- dust_system_create(sir, pars = list(), dt = 1 / 128)
dust_system_set_state_initial(sys)
t <- seq(0, 20, by = 1 / 128)
y <- dust_system_simulate(sys, t)
y <- dust_unpack_state(sys, y)

plot(t[t %% 1 == 0], y$incidence[t %% 1 == 0], type = "o", pch = 19,
     ylab = "Infection incidence", xlab = "Time")
lines(t, y$incidence, col = "red")

Time-varying inputs: using time

sir <- odin({
  update(S) <- S - n_SI
  update(I) <- I + n_SI - n_IR
  update(R) <- R + n_IR
  update(incidence) <- incidence + n_SI

  seed <- if (time == seed_time) seed_size else 0

  p_SI <- 1 - exp(-beta * I / N * dt)
  p_IR <- 1 - exp(-gamma * dt)
  n_SI <- min(seed + Binomial(S, p_SI), S)
  n_IR <- Binomial(I, p_IR)

  initial(S) <- N
  initial(I) <- 0
  initial(R) <- 0
  initial(incidence, zero_every = 1) <- 0

  N <- parameter(1000)
  beta <- parameter(0.2)
  gamma <- parameter(0.1)
  seed_time <- parameter()
  seed_size <- parameter()
})

Time-varying inputs: using interpolate

The interpolate function in odin can be used for time-varying parameters, with specification of

  • the times of changepoints
  • the values at those changepoints
  • the type of interpolation: linear, constant or spline

Time-varying inputs: using interpolate

sir <- odin({
  update(S) <- S - n_SI
  update(I) <- I + n_SI - n_IR
  update(R) <- R + n_IR
  update(incidence) <- incidence + n_SI

  beta <- interpolate(beta_time, beta_value, "constant")
  beta_time <- parameter()
  beta_value <- parameter()
  dim(beta_time, beta_value) <- parameter(rank = 1)

  p_SI <- 1 - exp(-beta * I / N * dt)
  p_IR <- 1 - exp(-gamma * dt)
  n_SI <- Binomial(S, p_SI)
  n_IR <- Binomial(I, p_IR)

  initial(S) <- N - I0
  initial(I) <- I0
  initial(R) <- 0
  initial(incidence, zero_every = 1) <- 0

  N <- parameter(1000)
  I0 <- parameter(10)
  gamma <- parameter(0.1)
})

Using arrays: model with age and vaccine

sir_age_vax <- odin({
  # Equations for transitions between compartments by age group
  update(S[, ]) <- new_S[i, j]
  update(I[, ]) <- I[i, j] + n_SI[i, j] - n_IR[i, j]
  update(R[, ]) <- R[i, j] + n_IR[i, j]
  update(incidence) <- incidence + sum(n_SI)

  # Individual probabilities of transition:
  p_SI[, ] <- 1 - exp(-rel_susceptibility[j] * lambda[i] * dt) # S to I
  p_IR <- 1 - exp(-gamma * dt) # I to R
  p_vax[, ] <- 1 - exp(-eta[i, j] * dt)

  # Force of infection
  m <- parameter() # age-structured contact matrix
  s_ij[, ] <- m[i, j] * sum(I[j, ])
  lambda[] <- beta * sum(s_ij[i, ])

  # Draws from binomial distributions for numbers changing between
  # compartments:
  n_SI[, ] <- Binomial(S[i, j], p_SI[i, j])
  n_IR[, ] <- Binomial(I[i, j], p_IR)

  # Nested binomial draw for vaccination in S
  # Assume you cannot move vaccine class and get infected in same step
  n_S_vax[, ] <- Binomial(S[i, j] - n_SI[i, j], p_vax[i, j])
  new_S[, 1] <- S[i, j] - n_SI[i, j] - n_S_vax[i, j] + n_S_vax[i, n_vax]
  new_S[, 2:n_vax] <- S[i, j] - n_SI[i, j] - n_S_vax[i, j] + n_S_vax[i, j - 1]

  initial(S[, ]) <- S0[i, j]
  initial(I[, ]) <- I0[i, j]
  initial(R[, ]) <- 0
  initial(incidence, zero_every = 1) <- 0

  # User defined parameters - default in parentheses:
  S0 <- parameter()
  I0 <- parameter()
  beta <- parameter(0.0165)
  gamma <- parameter(0.1)
  eta <- parameter()
  rel_susceptibility <- parameter()

  # Dimensions of arrays
  n_age <- parameter()
  n_vax <- parameter()
  dim(S, S0, n_SI, p_SI) <- c(n_age, n_vax)
  dim(I, I0, n_IR) <- c(n_age, n_vax)
  dim(R) <- c(n_age, n_vax)
  dim(m, s_ij) <- c(n_age, n_age)
  dim(lambda) <- n_age
  dim(eta) <- c(n_age, n_vax)
  dim(rel_susceptibility) <- n_vax
  dim(p_vax, n_S_vax, new_S) <- c(n_age, n_vax)
})

Key features of arrays

  • All arrays (whether state variable or parameter) need a dim equation
  • No use of i, j etc on LHS - indexing on the LHS is implicit
  • Support for up to 8 dimensions, with index variables i, j, k, l, i5, i6, i7, i8
  • Functions for reducing arrays such as sum, prod, min, max - can be applied over entire array or slices

Fitting odin models with monty

We return to our data on the daily incidence of cases

data <- read.csv("data/incidence.csv")
head(data)
#>   time cases
#> 1    1    12
#> 2    2    23
#> 3    3    25
#> 4    4    36
#> 5    5    30
#> 6    6    57

The data

plot(data, pch = 19, col = "red")

Our model

Let’s fit these data to our model

sir <- odin({
  update(S) <- S - n_SI
  update(I) <- I + n_SI - n_IR
  update(R) <- R + n_IR
  update(incidence) <- incidence + n_SI

  p_SI <- 1 - exp(-beta * I / N * dt)
  p_IR <- 1 - exp(-gamma * dt)
  n_SI <- Binomial(S, p_SI)
  n_IR <- Binomial(I, p_IR)

  initial(S) <- N - I0
  initial(I) <- I0
  initial(R) <- 0
  initial(incidence, zero_every = 1) <- 0

  N <- parameter(1000)
  I0 <- parameter(10)
  beta <- parameter(0.2)
  gamma <- parameter(0.1)
})

We will link cases in the data to incidence in the model, and we will treat beta and gamma as unknown parameters to be estimated

Adding likelihood to the model

sir <- odin({
  update(S) <- S - n_SI
  update(I) <- I + n_SI - n_IR
  update(R) <- R + n_IR
  update(incidence) <- incidence + n_SI

  initial(S) <- N - I0
  initial(I) <- I0
  initial(R) <- 0
  initial(incidence, zero_every = 1) <- 0

  p_SI <- 1 - exp(-beta * I / N * dt)
  p_IR <- 1 - exp(-gamma * dt)
  n_SI <- Binomial(S, p_SI)
  n_IR <- Binomial(I, p_IR)

  N <- parameter(1000)
  I0 <- parameter(10)
  beta <- parameter(0.2)
  gamma <- parameter(0.1)

  cases <- data()
  cases ~ Poisson(incidence)
})

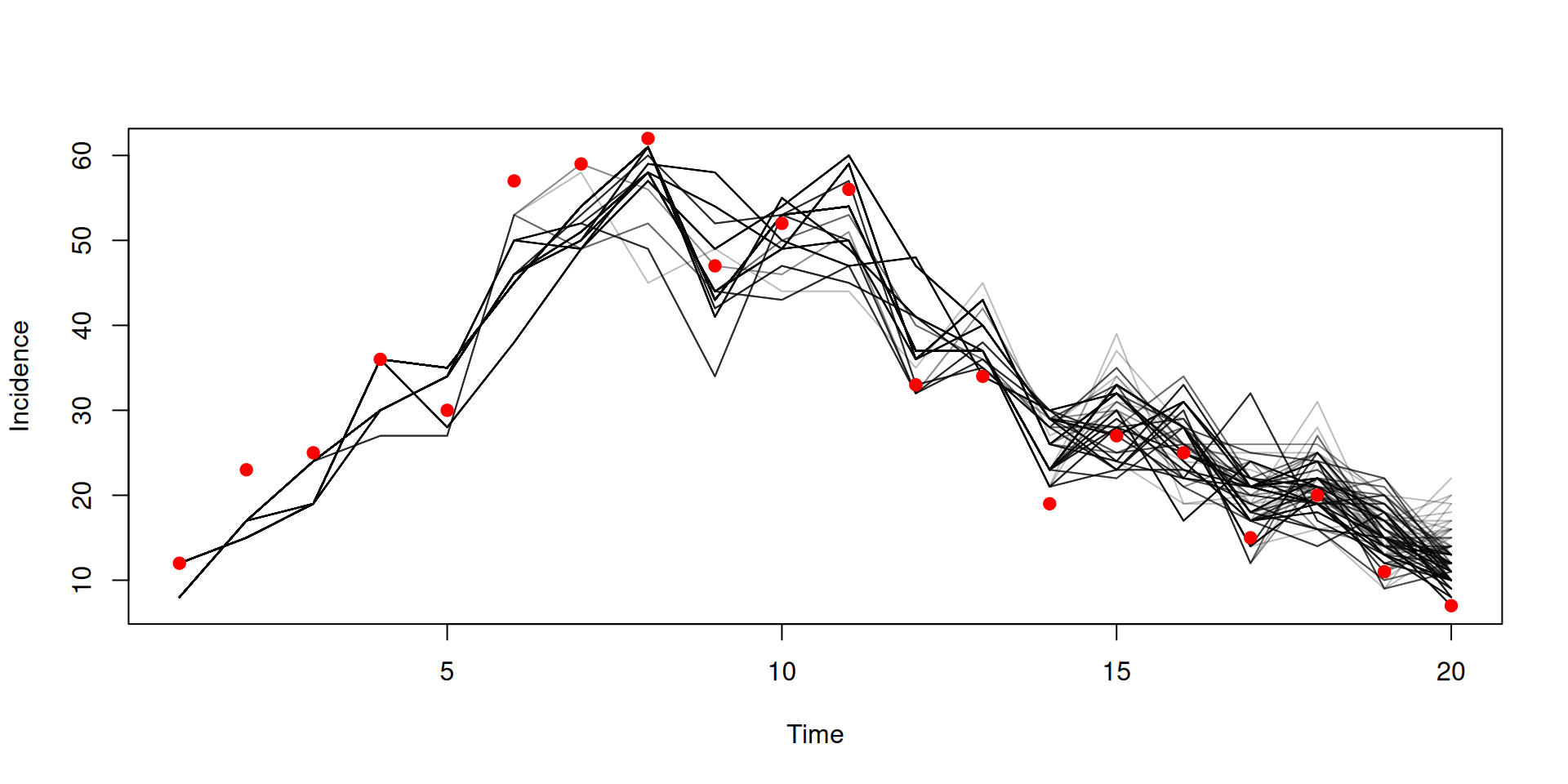

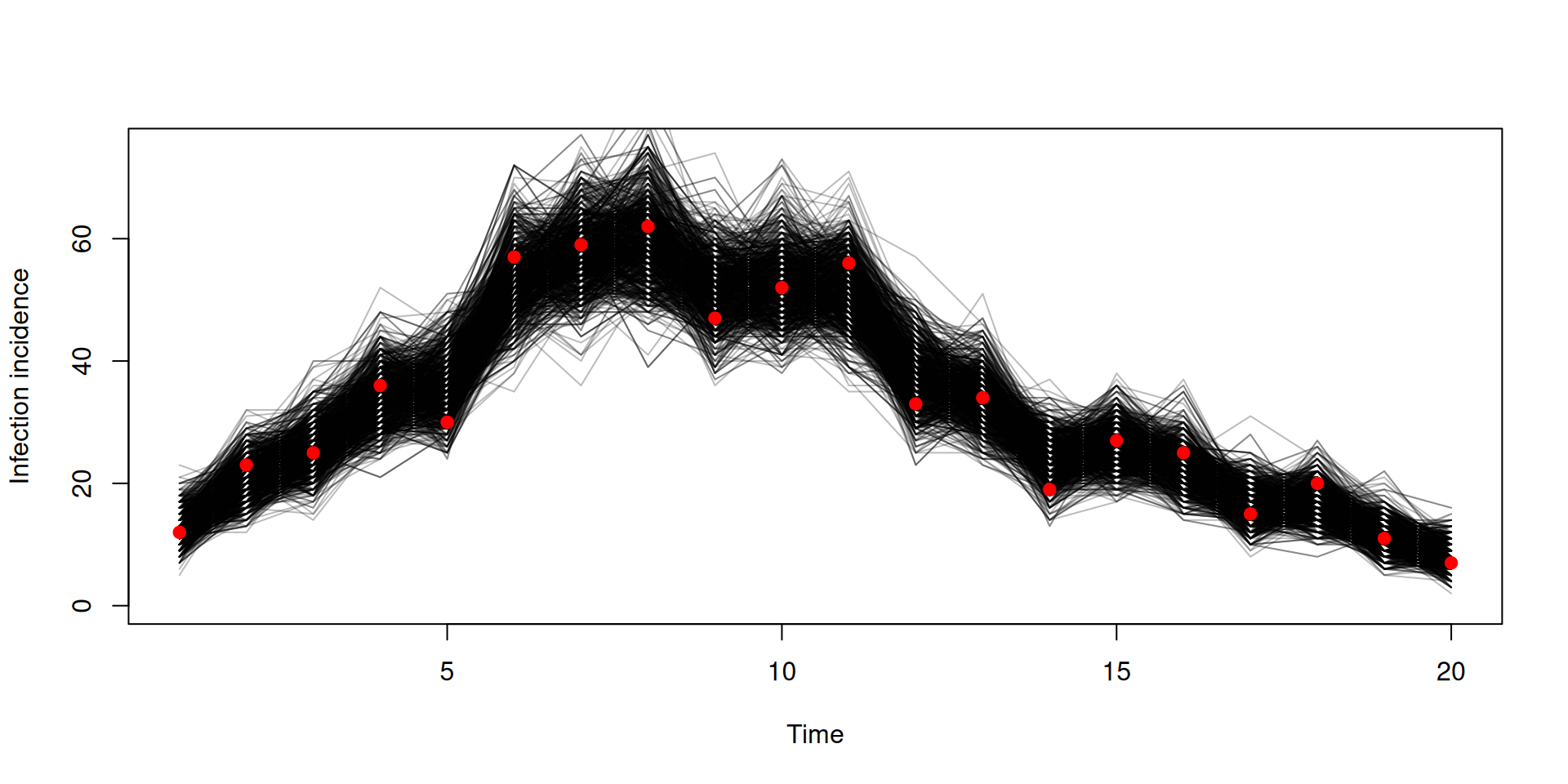

Calculating likelihood: particle filtering

Calculating likelihood

filter <- dust_filter_create(sir, data = data, time_start = 0,
                             n_particles = 200, dt = 0.25)
dust_likelihood_run(filter, list(beta = 0.4, gamma = 0.2))
#> [1] -92.98651

The system runs stochastically, and the likelihood is different each time:

dust_likelihood_run(filter, list(beta = 0.4, gamma = 0.2))
#> [1] -88.89419
dust_likelihood_run(filter, list(beta = 0.4, gamma = 0.2))
#> [1] -97.38405

Filtered trajectories

dust_likelihood_run(filter, list(beta = 0.4, gamma = 0.2),
                    save_trajectories = TRUE)
#> [1] -87.03677
y <- dust_likelihood_last_trajectories(filter)
y <- dust_unpack_state(filter, y)
matplot(data$time, t(y$incidence), type = "l", col = "#00000044", lty = 1,
        xlab = "Time", ylab = "Incidence")
points(data, pch = 19, col = "red")

Particle MCMC

So we have a marginal likelihood estimator from our particle filter

How do we sample from beta and gamma?

We need:

  • to tidy up our parameters
  • to create a prior
  • to create a posterior
  • to create a sampler

“Parameters”

  • Our filter takes a list of beta and gamma, pars
    • it could take all sorts of other things, not all of which are to be estimated
    • some of the inputs might be vectors or matrices
  • Our MCMC takes an unstructured vector \(\theta\)
    • we propose a new \(\theta^*\) via some kernel, say a multivariate normal requiring a matrix of parameters corresponding to \(\theta\)
    • we need a prior over \(\theta\), but not necessarily every element of pars
  • Smoothing this over is a massive nuisance
    • some way of mapping from \(\theta\) to pars (and back again)

Parameter packers

Our solution, “packers”

packer <- monty_packer(c("beta", "gamma"), fixed = list(I0 = 10))
packer
#>
#> ── <monty_packer> ──────────────────────────────────────────────────────────────
#> ℹ Packing 2 parameters: 'beta' and 'gamma'
#> ℹ Use '$pack()' to convert from a list to a vector
#> ℹ Use '$unpack()' to convert from a vector to a list
#> ℹ See `?monty_packer()` for more information

We can transform from \(\theta\) to a named list:

packer$unpack(c(0.2, 0.1))
#> $beta
#> [1] 0.2
#>
#> $gamma
#> [1] 0.1
#>
#> $I0
#> [1] 10

and back the other way:

packer$pack(c(beta = 0.2, gamma = 0.1, I0 = 10))
#> [1] 0.2 0.1

Priors

Another DSL, similar to odin’s:

prior <- monty_dsl({
  beta ~ Exponential(mean = 0.5)
  gamma ~ Exponential(mean = 0.3)
})

This is a “monty model”

prior
#>
#> ── <monty_model> ───────────────────────────────────────────────────────────────
#> ℹ Model has 2 parameters: 'beta' and 'gamma'
#> ℹ This model:
#> • can compute gradients
#> • can be directly sampled from
#> • accepts multiple parameters
#> ℹ See `?monty_model()` for more information
monty_model_density(prior, c(0.2, 0.1))
#> [1] 1.163787

From a dust filter to a monty model

filter
#>
#> ── <dust_likelihood (odin_system)> ─────────────────────────────────────────────
#> ℹ 4 state x 200 particles
#> ℹ The likelihood is stochastic
#> ℹ This system runs in discrete time with dt = 0.25
#> ℹ Use coef() (`?stats::coef()`) to get more information on parameters

Combine a filter and a packer

packer <- monty_packer(c("beta", "gamma"))
likelihood <- dust_likelihood_monty(filter, packer, save_trajectories = TRUE)
likelihood
#>
#> ── <monty_model> ───────────────────────────────────────────────────────────────
#> ℹ Model has 2 parameters: 'beta' and 'gamma'
#> ℹ This model:
#> • is stochastic
#> • has an observer
#> ℹ See `?monty_model()` for more information

Here we specify save_trajectories = TRUE to output the state trajectories at even collected sample.

Posterior from likelihood and prior

Combine a likelihood and a prior to make a posterior

\[ \underbrace{\Pr(\theta | \mathrm{data})}_{\mathrm{posterior}} \propto \underbrace{\Pr(\mathrm{data} | \theta)}_\mathrm{likelihood} \times \underbrace{P(\theta)}_{\mathrm{prior}} \]

posterior <- likelihood + prior
posterior
#>
#> ── <monty_model> ───────────────────────────────────────────────────────────────
#> ℹ Model has 2 parameters: 'beta' and 'gamma'
#> ℹ This model:
#> • can be directly sampled from
#> • is stochastic
#> • has an observer
#> ℹ See `?monty_model()` for more information

(remember that addition is multiplication on a log scale)

Create a sampler

A diagonal variance-covariance matrix (uncorrelated parameters)

vcv <- diag(2) * 0.2
vcv
#>      [,1] [,2]
#> [1,]  0.2  0.0
#> [2,]  0.0  0.2

Use this to create a “random walk” sampler:

sampler <- monty_sampler_random_walk(vcv)
sampler
#>
#> ── <monty_sampler: Random walk (monty_random_walk)> ────────────────────────────
#> ℹ Use `?monty_sample()` to use this sampler
#> ℹ See `?monty_random_walk()` for more information

Let’s sample!

samples <- monty_sample(posterior, sampler, 1000, n_chains = 3)
samples
#>
#> ── <monty_samples: 2 parameters x 1000 samples x 3 chains> ─────────────────────
#> ℹ Parameters: 'beta' and 'gamma'
#> ℹ Conversion to other types is possible:
#> → ! posterior::as_draws_array() [package installed, but not loaded]
#> → ! posterior::as_draws_df() [package installed, but not loaded]
#> → ✖ coda::as.mcmc.list() [package missing]
#> ℹ These samples have associated observations
#> ℹ See `?monty_sample()` and `vignette("samples")` for more information

The result: diagnostics

Diagnostics can be used from the posterior package

## Note: as_draws_df converts samples$pars, and drops anything else in samples
samples_df <- posterior::as_draws_df(samples)
posterior::summarise_draws(samples_df)
#> # A tibble: 2 × 10
#>   variable  mean median    sd    mad    q5   q95  rhat ess_bulk ess_tail
#>   <chr>    <dbl>  <dbl> <dbl>  <dbl> <dbl> <dbl> <dbl>    <dbl>    <dbl>
#> 1 beta     0.845  0.832 0.130 0.117  0.670 1.07   1.05     57.2     45.9
#> 2 gamma    0.537  0.511 0.108 0.0882 0.401 0.704  1.07     79.7     66.2

The results: parameters

You can use the posterior package in conjunction with bayesplot (and then also ggplot2)

bayesplot::mcmc_scatter(samples_df)

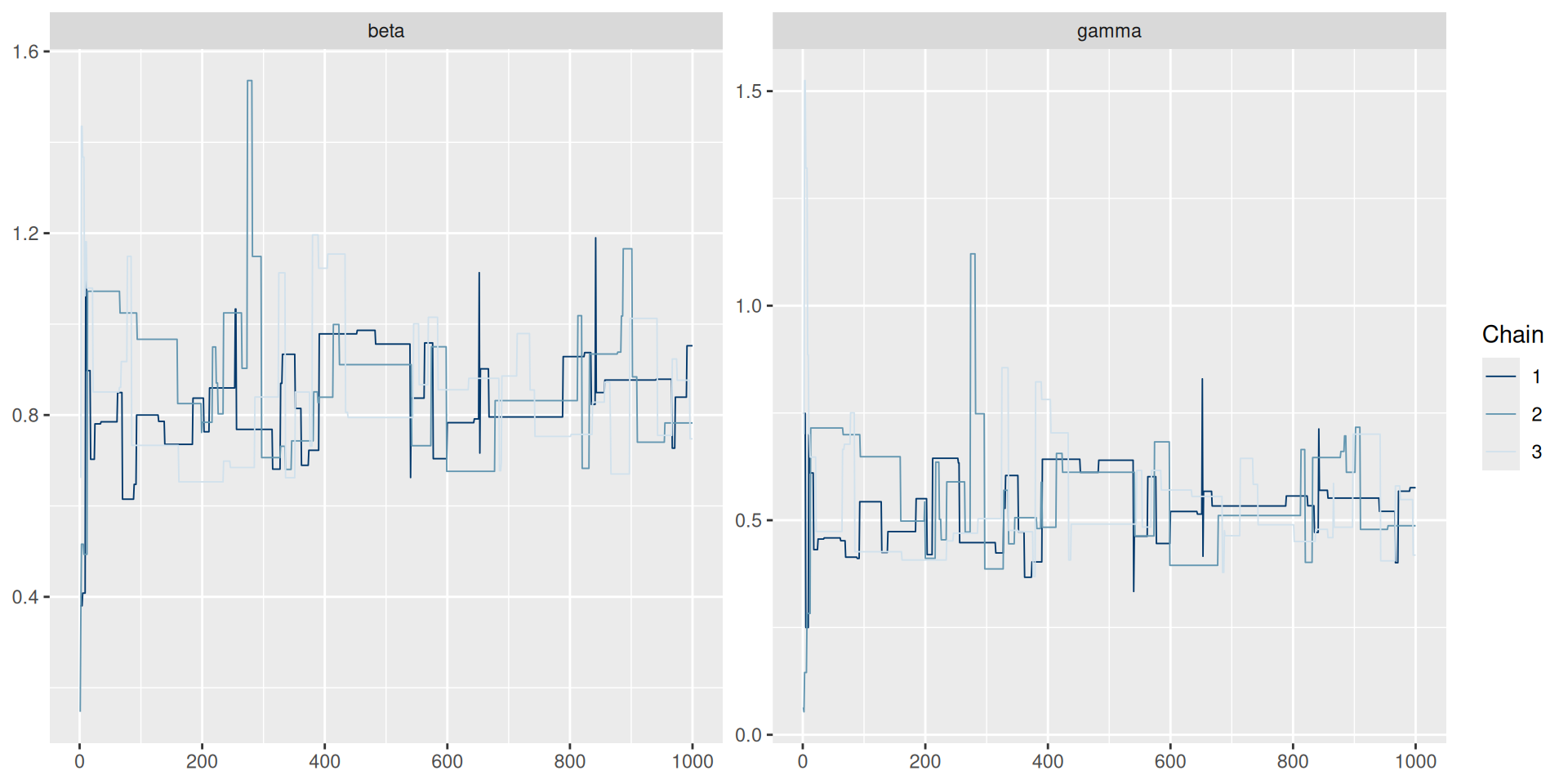

The result: traceplots

bayesplot::mcmc_trace(samples_df)

The result: density over time

matplot(drop(samples$density), type = "l", lty = 1)

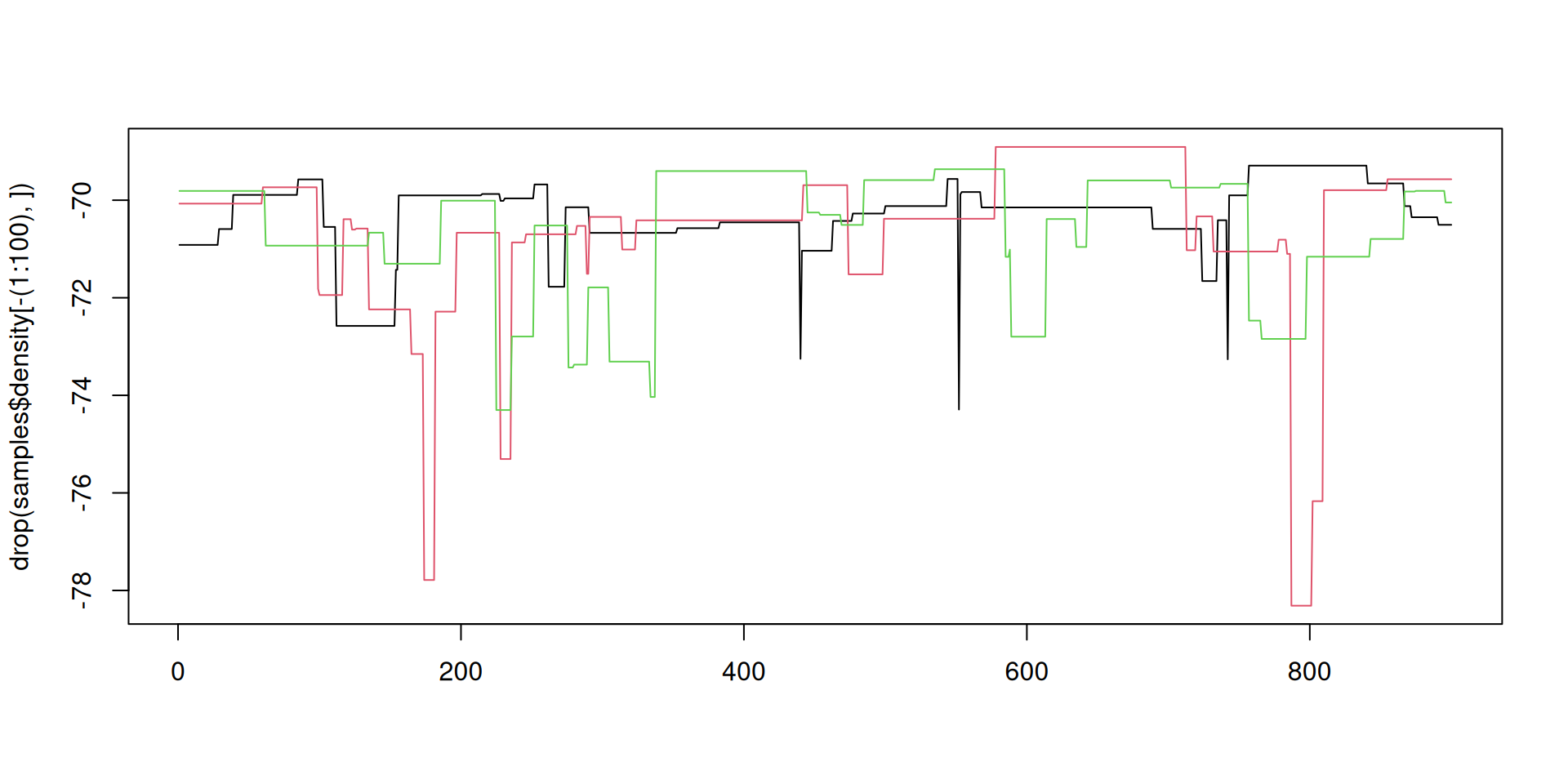

The result: density over time

matplot(drop(samples$density[-(1:100), ]), type = "l", lty = 1)

Better mixing

vcv <- matrix(c(0.01, 0.005, 0.005, 0.005), 2, 2)
sampler <- monty_sampler_random_walk(vcv)
samples <- monty_sample(posterior, sampler, 2000, initial = samples,
                        n_chains = 4)

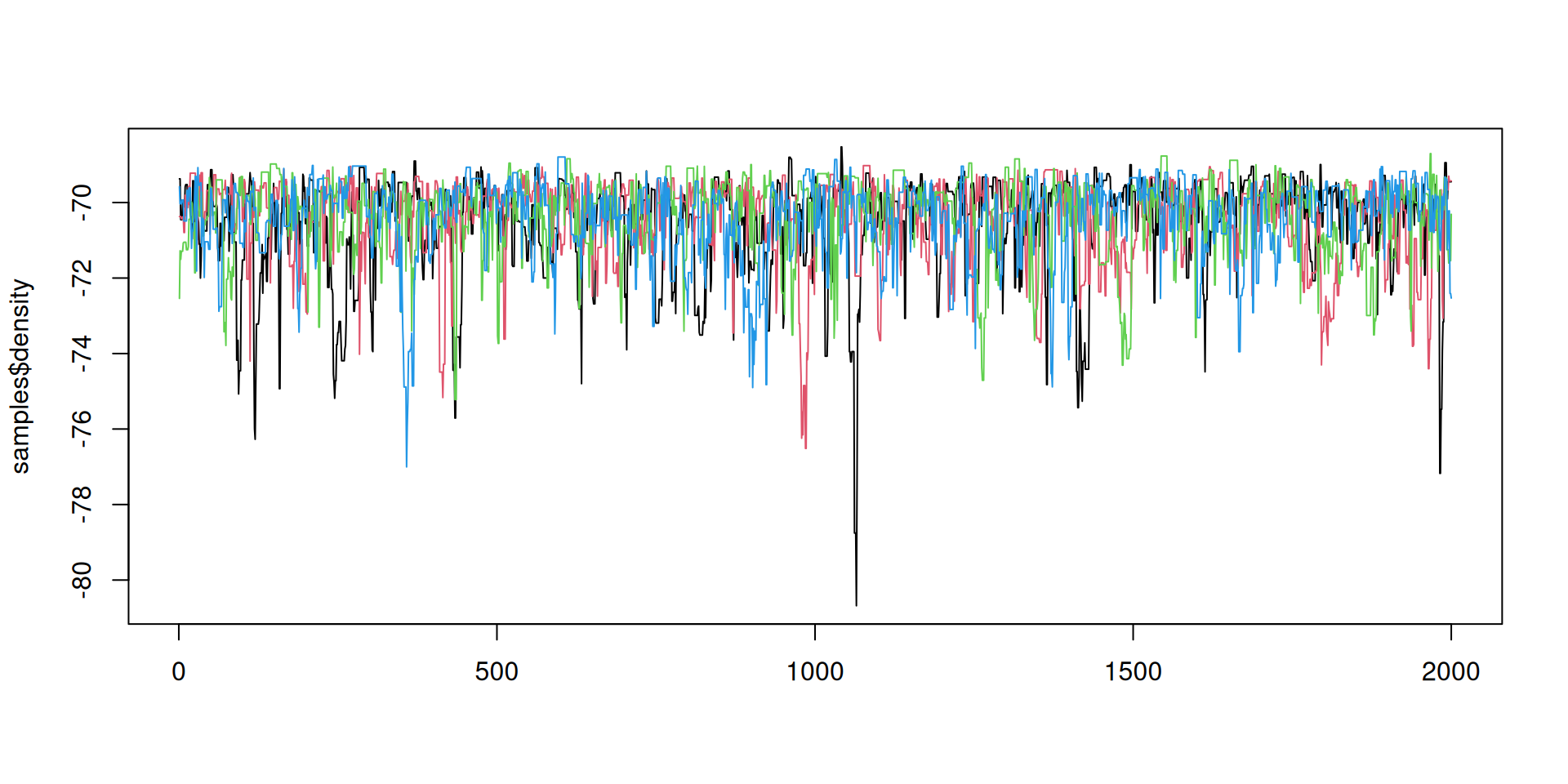

matplot(samples$density, type = "l", lty = 1)

Better mixing: the results

samples_df <- posterior::as_draws_df(samples)
posterior::summarise_draws(samples_df)
#> # A tibble: 2 × 10
#>   variable  mean median     sd    mad    q5   q95  rhat ess_bulk ess_tail
#>   <chr>    <dbl>  <dbl>  <dbl>  <dbl> <dbl> <dbl> <dbl>    <dbl>    <dbl>
#> 1 beta     0.853  0.838 0.123  0.117  0.675 1.08   1.01     495.     741.
#> 2 gamma    0.538  0.526 0.0980 0.0914 0.400 0.713  1.00     462.     617.

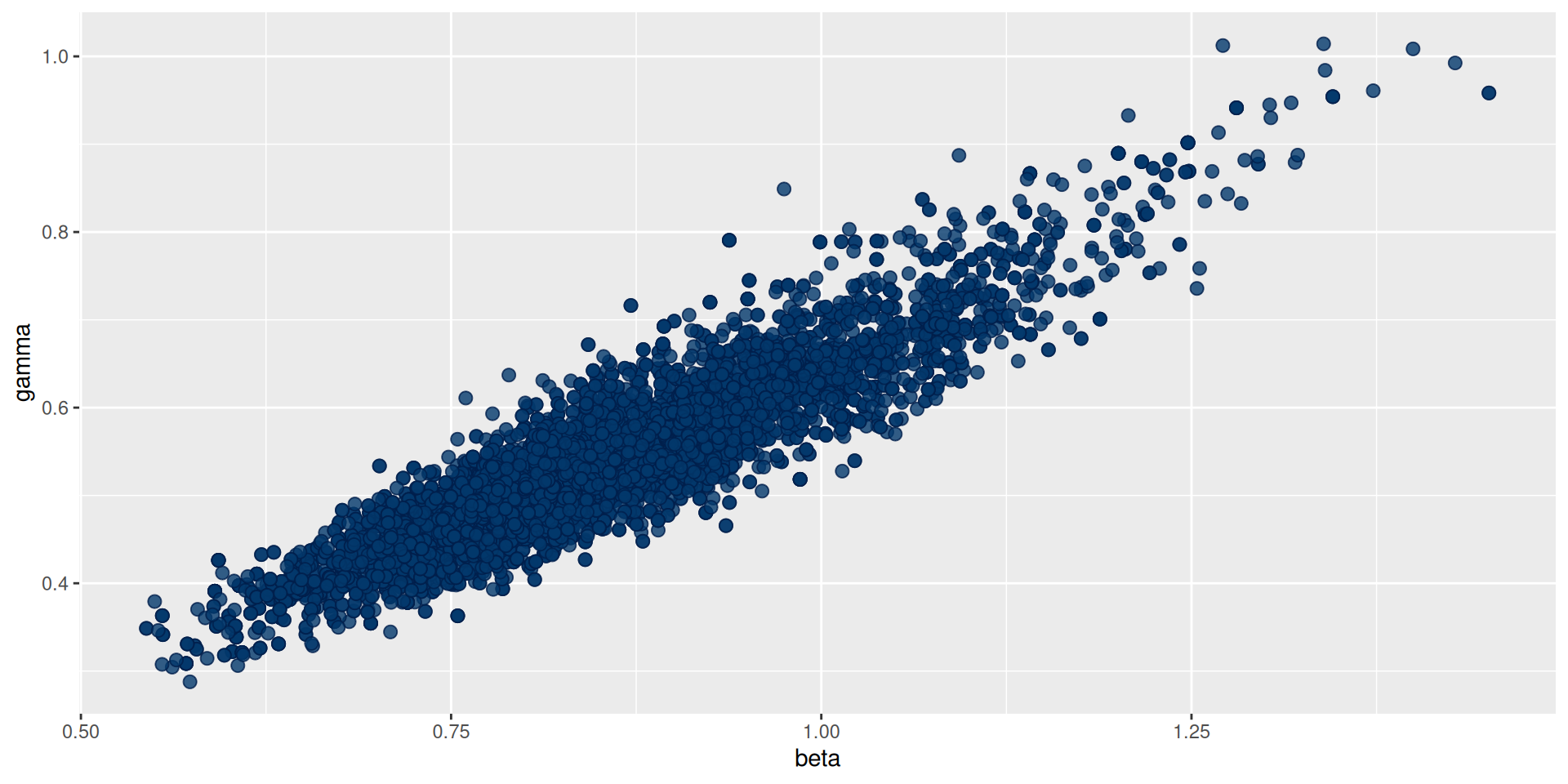

Better mixing: the results

bayesplot::mcmc_scatter(samples_df)

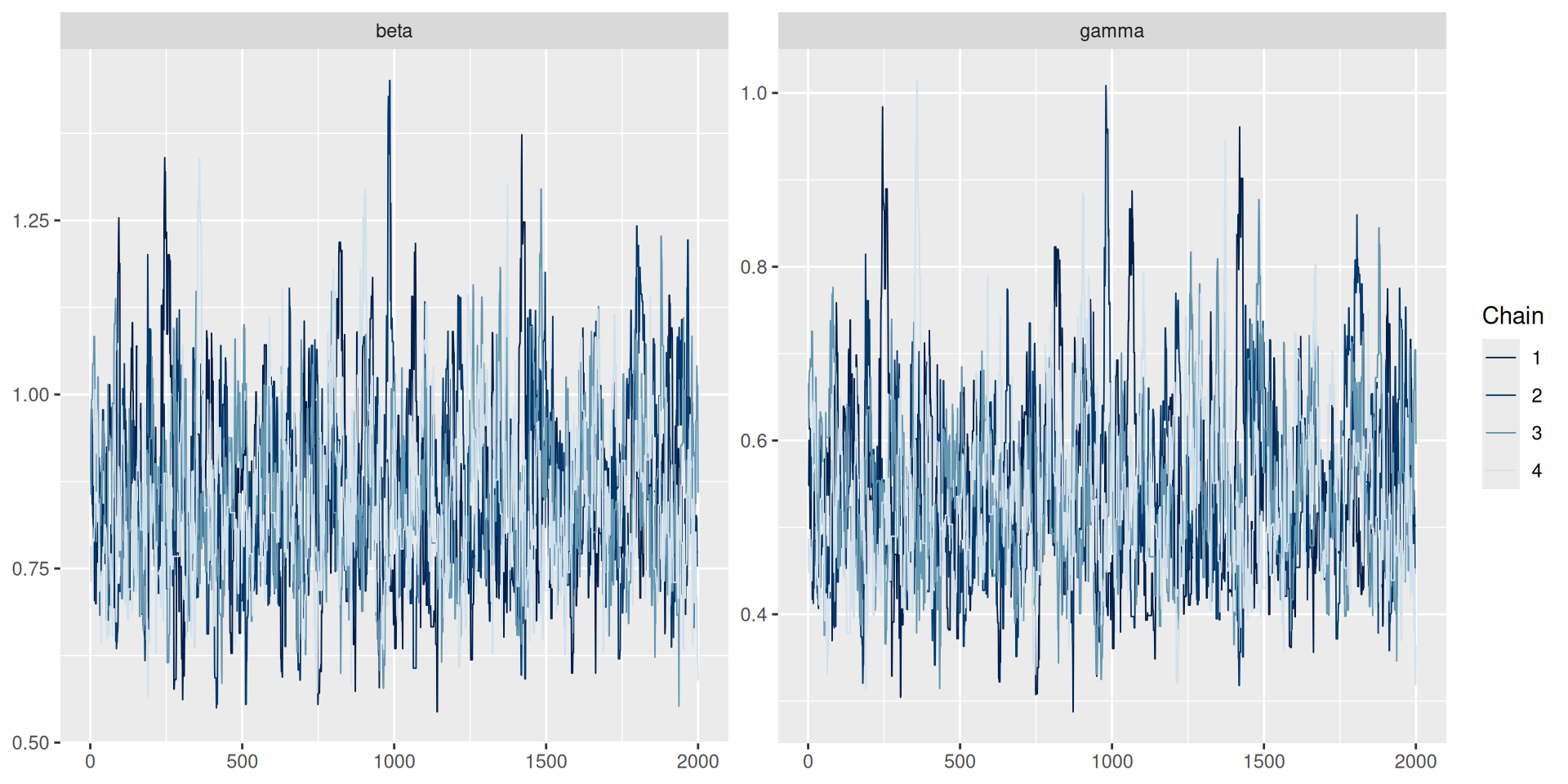

Better mixing: the results

bayesplot::mcmc_trace(samples_df)

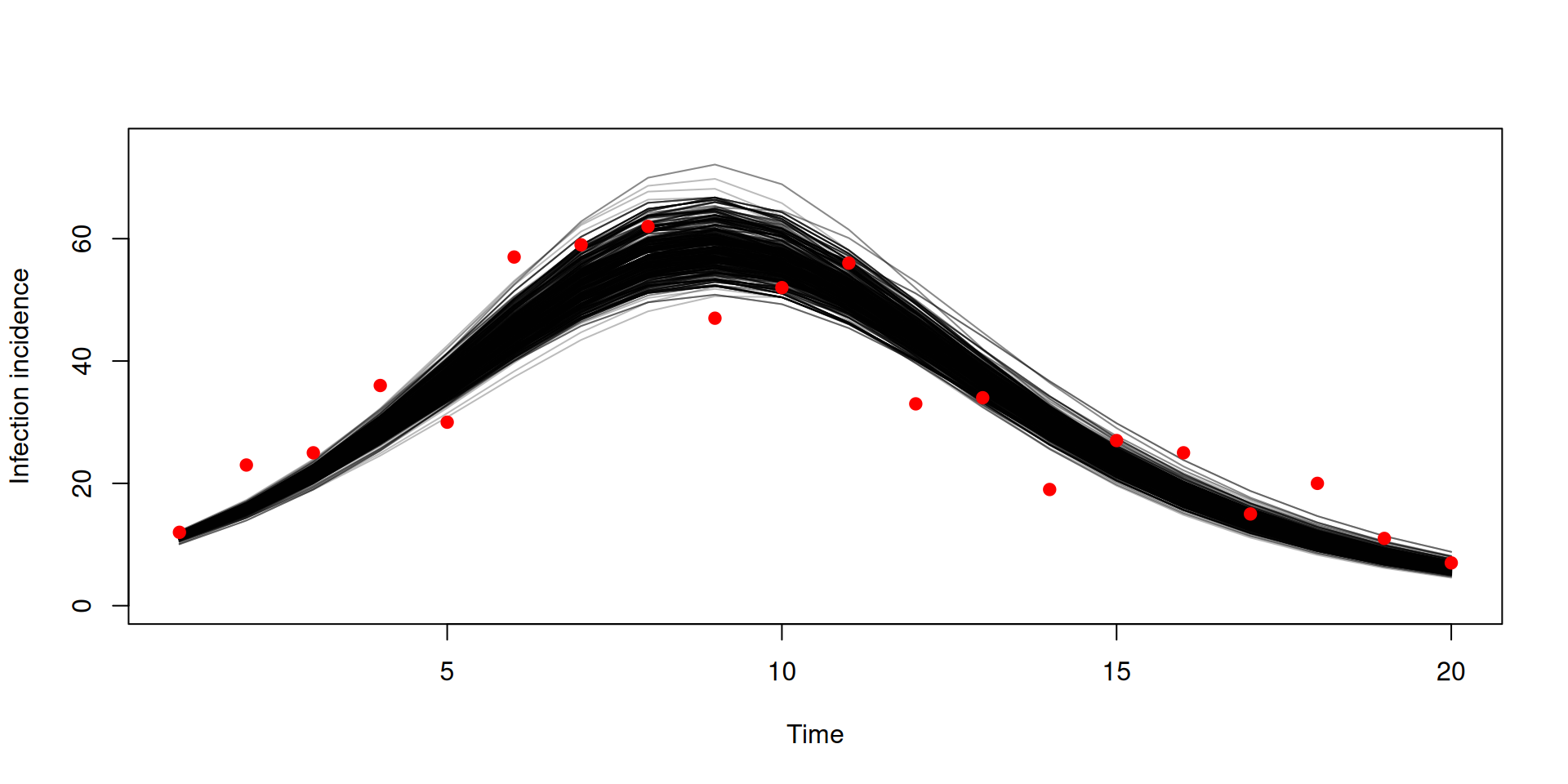

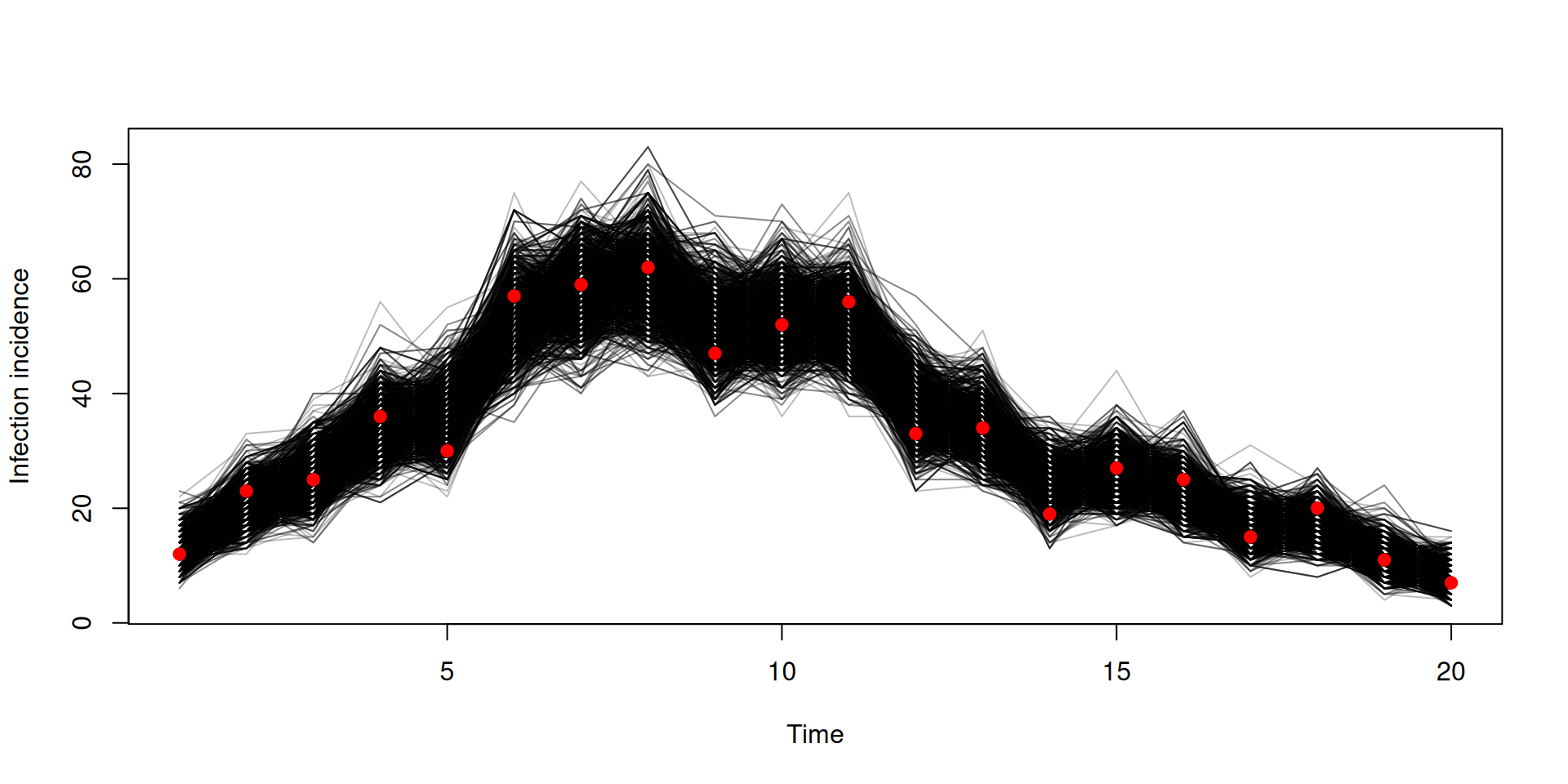

Trajectories

trajectories <- dust_unpack_state(filter,
                                  samples$observations$trajectories)
matplot(data$time, trajectories$incidence[, , 1], type = "l", lty = 1,
        col = "#00000044", xlab = "Time", ylab = "Infection incidence")
points(data, pch = 19, col = "red")

Trajectories

Trajectories are 4-dimensional

# (4 states x 20 time points x 1000 samples x 4 chains)
dim(samples$observations$trajectories)
#> [1]    4   20 2000    4

These can get very large quickly - there are two main ways to help reduce this:

  • Saving only a subset of the states
  • Thinning (can be done while running or after running)
samples <- monty_samples_thin(samples, burnin = 500, thinning_factor = 2)

Pipeline summary

  • Write model including likelihood and compile with odin2
  • Build filter using data and compiled model with dust2
  • Create packer with monty
  • Create monty likelihood object using filter and packer with dust2
  • Create prior with monty DSL
  • Combine prior and likelihood models
  • Create sampler
  • Run sampler with monty_sample

Deterministic models from stochastic

  • Stochastic models written in odin, can be run deterministically
  • Runs by taking the expectation of any random draws
  • This gives two models for the price of one
  • However it might not be suitable for all models

Fitting in deterministic mode

The key difference is to use dust_unfilter_create

unfilter <- dust_unfilter_create(sir, data = data, time_start = 0, dt = 0.25)

Note as this is deterministic it produces the same likelihood every time

dust_likelihood_run(unfilter, list(beta = 0.4, gamma = 0.2))
#> [1] -371.9752
dust_likelihood_run(unfilter, list(beta = 0.4, gamma = 0.2))
#> [1] -371.9752

Fitting in deterministic mode

likelihood <- dust_likelihood_monty(unfilter, packer, save_trajectories = TRUE)
posterior <- likelihood + prior
samples_det <- monty_sample(posterior, sampler, 1000, n_chains = 4)
samples_det <- monty_samples_thin(samples_det,
                                  burnin = 500,
                                  thinning_factor = 2)

Stochastic v deterministic comparison

y <- dust2::dust_unpack_state(filter, samples$observations$trajectories)
incidence <- array(y$incidence, c(20, 1000))
matplot(data$time, incidence, type = "l", lty = 1, col = "#00000044",
        xlab = "Time", ylab = "Infection incidence", ylim = c(0, 75))
points(data, pch = 19, col = "red")

Stochastic v deterministic comparison

y <- dust2::dust_unpack_state(filter, samples_det$observations$trajectories)
incidence <- array(y$incidence, c(20, 1000))
matplot(data$time, incidence, type = "l", lty = 1, col = "#00000044",
        xlab = "Time", ylab = "Infection incidence", ylim = c(0, 75))
points(data, pch = 19, col = "red")

Stochastic v deterministic comparison

pars_stochastic <- array(samples$pars, c(2, 500))
pars_deterministic <- array(samples_det$pars, c(2, 500))
plot(pars_stochastic[1, ], pars_stochastic[2, ], ylab = "gamma", xlab = "beta",
     pch = 19, col = "blue")
points(pars_deterministic[1, ], pars_deterministic[2, ], pch = 19, col = "red")
legend("bottomright", c("stochastic fit", "deterministic fit"), pch = c(19, 19),
       col = c("blue", "red"))

Projections and counterfactuals

  • Save the final state at every sample (for onward simulation)
  • Save snapshots at intermediate timepoints of the state at every sample (for counterfactuals)

Example implementation of both of these can be found here

Parallelism

Two places to parallelise

  • among particles in your filter
  • between chains in the sample

e.g., 4 threads per filter x 2 workers = 8 total cores in use

These are both straightforward to setup, a demonstration can be found here

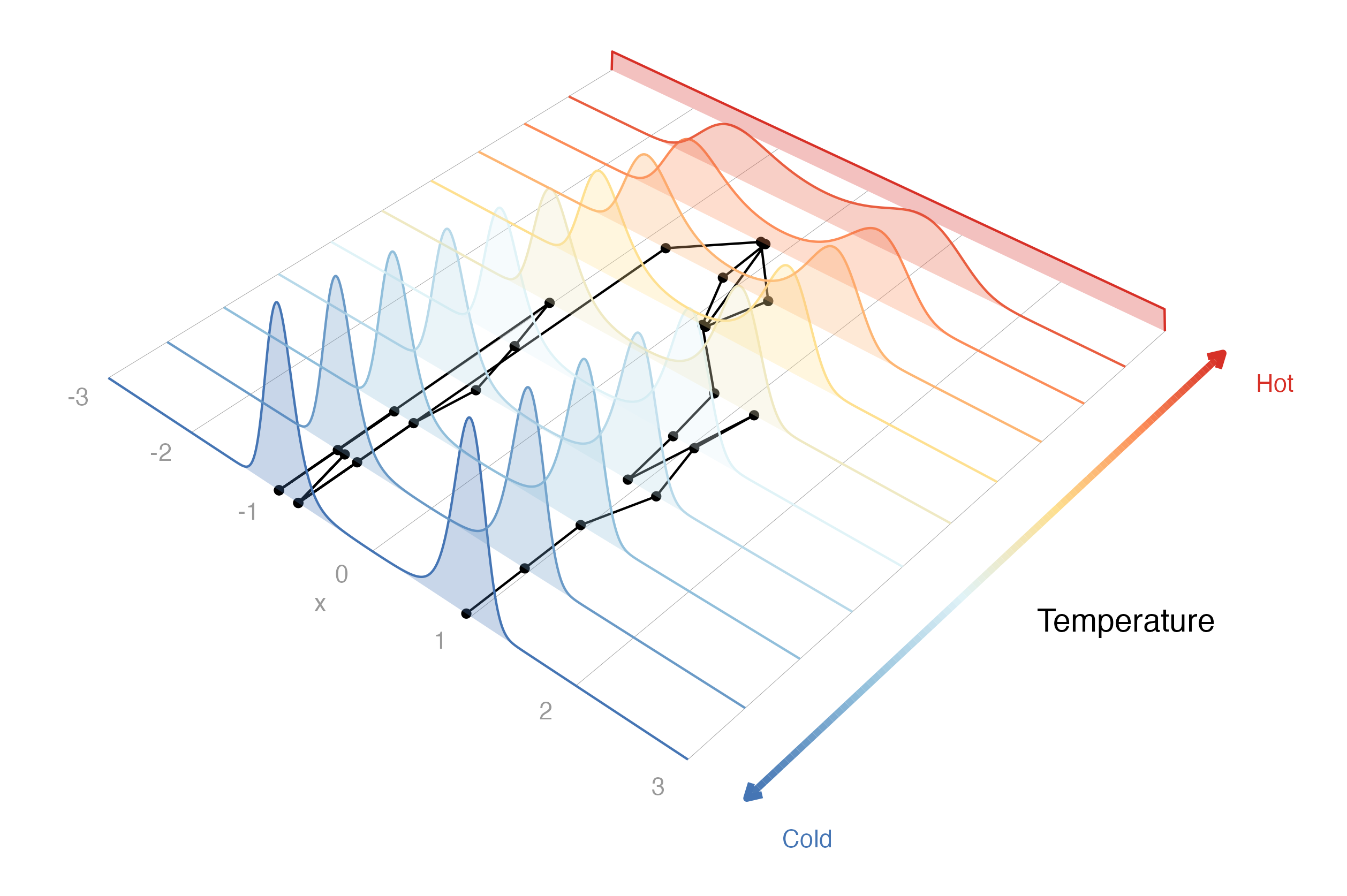

Advanced monty: parallel tempering

Motivating example: likelihood is a mixture of normals model

ex_mixture <- function(x) log(dnorm(x, mean = 5) / 2 + dnorm(x, mean = -5) / 2)
likelihood <- monty_model_function(ex_mixture, allow_multiple_parameters = TRUE)

prior is a normal distribution with a wider variance

prior <- monty_dsl({
  x ~ Normal(0, 10)
})

Advanced monty: parallel tempering

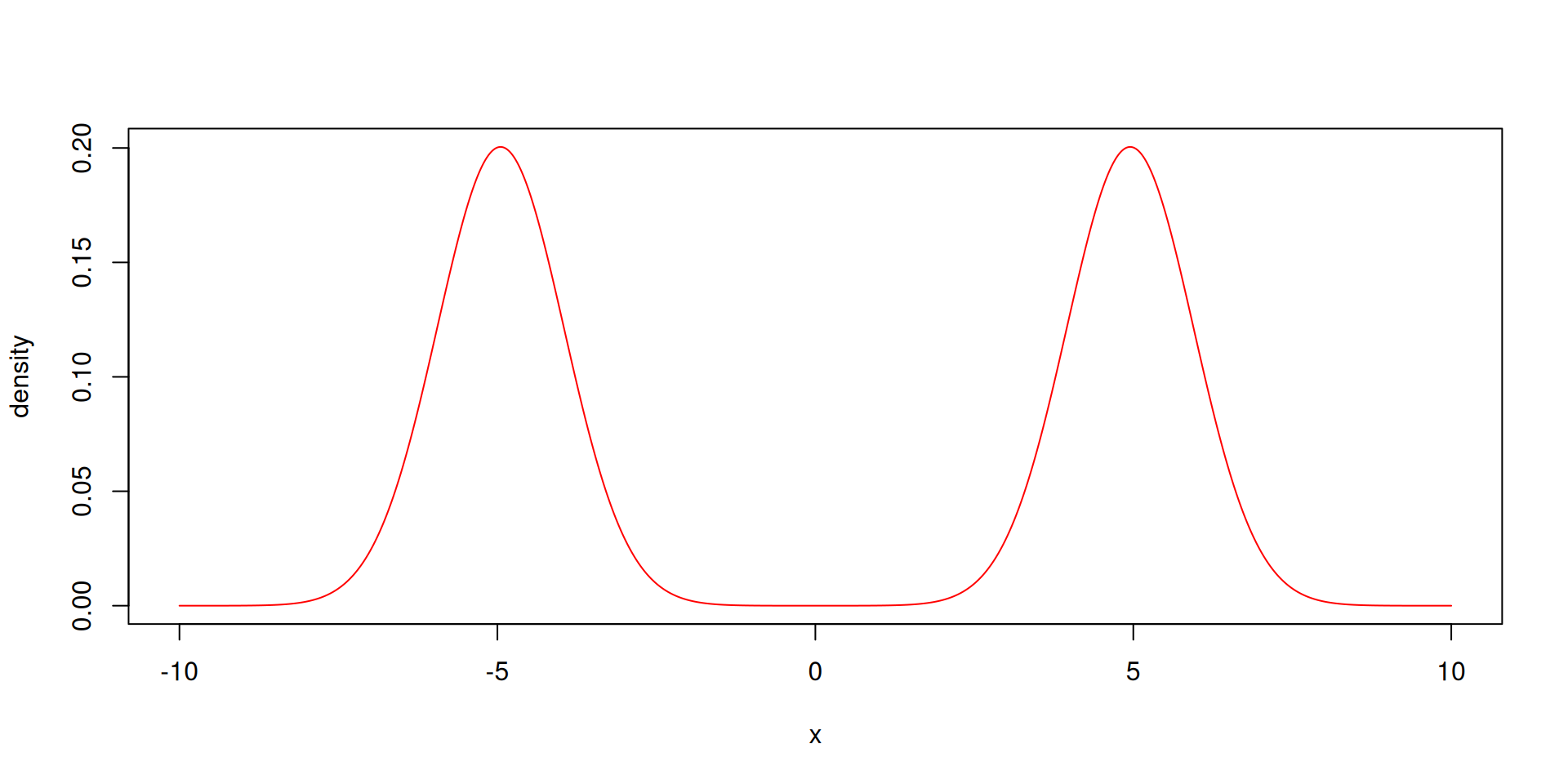

posterior is the product of the two (the sum on a log-scale)

posterior <- likelihood + prior
x <- seq(-10, 10, length.out = 1001)
y <- exp(posterior$density(rbind(x)))
plot(x, y / sum(y) / diff(x)[[1]], col = "red", type = 'l', ylab = "density")

Advanced monty: parallel tempering

Try a random walk Metropolis-Hastings sampler for this model

vcv <- matrix(1.5)
sampler_rw <- monty_sampler_random_walk(vcv = vcv)
res_rw <- monty_sample(posterior, sampler_rw, n_steps = 1000)

Advanced monty: parallel tempering

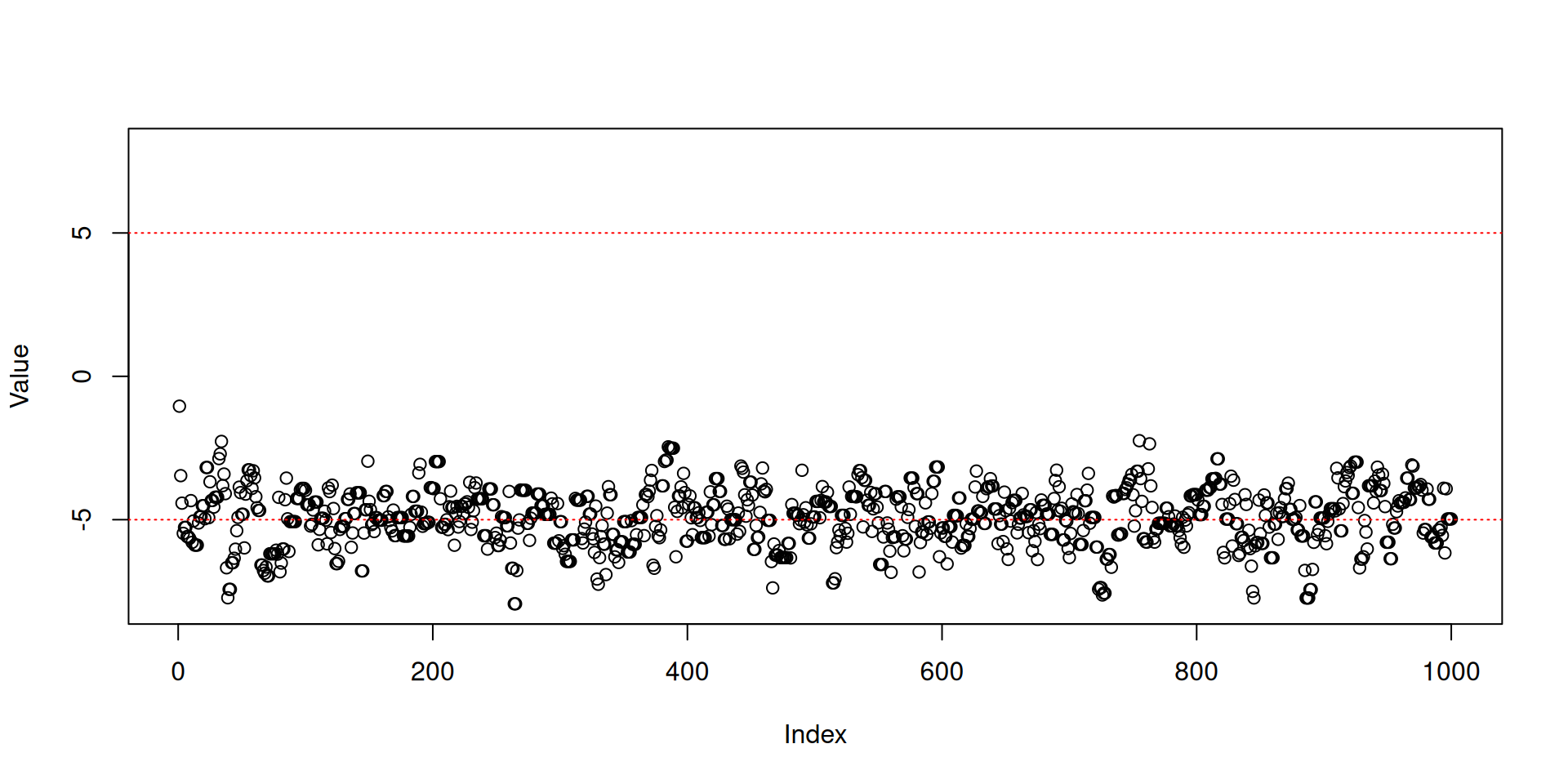

Only one mode has been explored

plot(res_rw$pars[1, , ], ylim = c(-8, 8), ylab = "Value")
abline(h = c(-5, 5), lty = 3, col = "red")

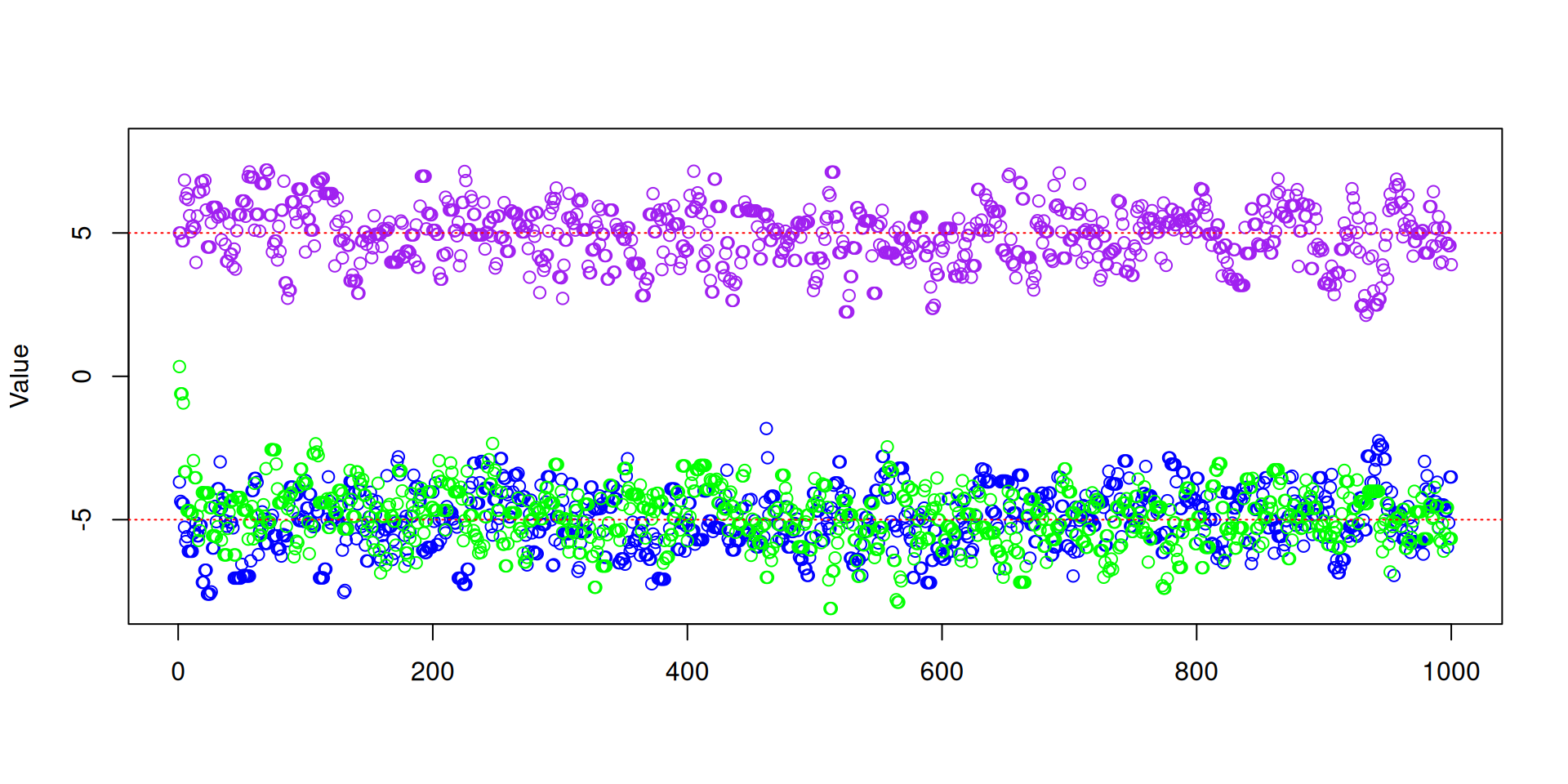

Advanced monty: parallel tempering

Multiple chains does not solve the issue

res_rw3 <- monty_sample(posterior, sampler_rw, n_steps = 1000, n_chains = 3,
                        initial = rbind(c(-5, 0, 5)))
matplot(res_rw3$pars[1, , ], type = "p", pch = 21, ylim = c(-8, 8),
        ylab = "Value", col = c("blue", "green", "purple"))
abline(h = c(-5, 5), lty = 3, col = "red")

Advanced monty: parallel tempering

Parallel tempering helps solve such problems

  • Multiple chains run at different “temperatures”
  • states of the chains can be swapped periodically

Advanced monty: parallel tempering

Use our RW sampler within the parallel tempering sampler

vcv <- matrix(1.5)
sampler_rw <- monty_sampler_random_walk(vcv = vcv)
s <- monty_sampler_parallel_tempering(sampler_rw, n_rungs = 10)
res_pt <- monty_sample(posterior, s, 1000, n_chains = 1)

Advanced monty: parallel tempering

Parallel tempering helps us explore both modes

plot(res_pt$pars[1, , ], ylim = c(-8, 8), ylab = "Value")
abline(h = c(-5, 5), lty = 3, col = "red")

Other monty samplers

  • Adaptive random walk Metropolis-Hastings
    • model must be deterministic
  • Hamiltonian Monte Carlo
    • model must be differentiable, odin models not supported
  • Build your own sampler
    • monty will handle bookkeeping and parallelism

Future roadmap

  • NUTS (No U-Turn Sampler) algorithm
  • monty support for augmented data
  • nested sampler for nested models
    • fitting multiple regions together
    • some parameters are regional, some shared
    • regions independent given shared parameters
    • alternate between updates of the regional parameters (can be done independently) and shared parameters (must be done jointly)

Acknowledgements

  • Rich Fitzjohn
  • Marc Baguelin

Resources
